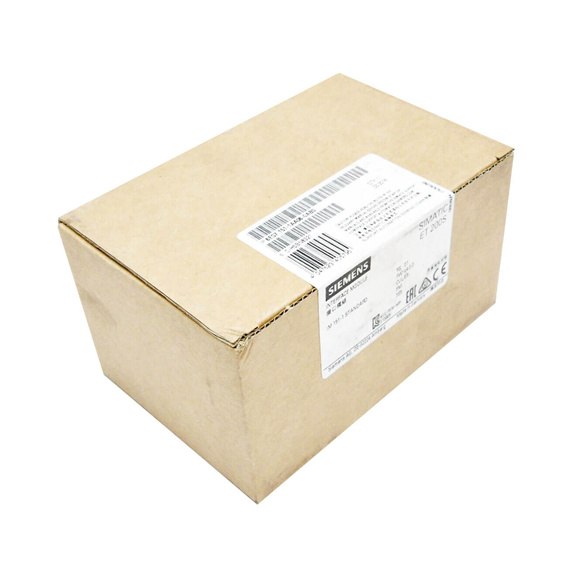

| Article number | 6ES7151-1AA06-0AB0 | 6ES7151-1BA02-0AB0 | 6ES7151-1CA00-0AB0 |
| ET200S, IM151-1 Std, 12MBit/s | ET200S, Interf.Mod. IM151-1 HF, 12MBit/s | ET200S, IM151-1 Basic, 12MBit/s |
| General information |
|
|
|
| Product type designation | IM 151-1 ST | IM 151-1 HF | IM 151-1 Basic |
| Vendor identification (VendorID) | 806Ah |
| 80F3h |
| Product function |
|
|
|
|
● Isochronous mode | No | Yes | No |
| Supply voltage |
|
|
|
| Mains buffering |
|
|
|
|
● Mains/voltage failure stored energy time | 20 ms | 20 ms | No |
| Input current |
|
|
|
| from supply voltage 1L+, max. | 200 mA | 200 mA | 70 mA |
| Power loss |
|
|
|
| Power loss, typ. | 3.3 W | 3.3 W | 1.5 W |
| Address area |
|
|
|
| Addressing volume |
|
|
|
|
● Inputs | 244 byte | 244 byte | 88 byte |
|
● Outputs | 244 byte | 244 byte | 88 byte |
| Interfaces |
|
|
|
| Transmission procedure | RS 485 | RS 485 | RS 485 |
| Transmission rate, max. | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s | 12 Mbit/s | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s |
| PROFIBUS DP |
|
|
|
|
● Output current, max. | 80 mA |
| 80 mA |
|
● SYNC capability | Yes | Yes | Yes |
|
● FREEZE capability | Yes | Yes | Yes |
|
● Direct data exchange (slave-to-slave communication) | Yes | Yes | Yes |
|
● Design of electrical connection | 9-pin sub D socket |
| 9-pin sub D socket |
|
● Cable length, max. | 1 200 m |
|
|
| Protocols |
|
|
|
| Supports protocol for PROFINET IO | No | No | No |
| PROFIBUS DP | Yes | Yes | Yes |
| Protocols (Ethernet) |
|
|
|
|
● TCP/IP | No | No | No |
| Interrupts/diagnostics/status information |
|
|
|
| Alarms | Yes | Yes | No |
| Diagnostics function | Yes | Yes | Yes |
| Diagnostics indication LED |
|
|
|
|
● Bus fault BF (red) | Yes | Yes | Yes |
|
● Group error SF (red) | Yes | Yes | Yes |
|
● Monitoring 24 V voltage supply ON (green) | Yes | Yes | Yes |
| Potential separation |
|
|
|
| between backplane bus and electronics | No | No | No |
| between electronic block and PROFIBUS DP | Yes | Yes | Yes |
| between supply voltage and electronics | No | No | No |
| Isolation |
|
|
|
| Isolation tested with | 500 V DC | 500 V DC | 500 V DC |
| Standards, approvals, certificates |
|
|
|
| CE mark | Yes | Yes |
|
| UL approval | Yes | Yes |
|
| Ambient conditions |
|
|
|
| Ambient temperature during operation |
|
|
|
|
● min. | 0 °C | 0 °C |
|
|
● max. | 60 °C | 60 °C |
|
| Dimensions |
|
|
|
| Width | 45 mm | 45 mm | 45 mm |
| Height | 119.5 mm | 119.5 mm | 119.5 mm |
| Depth | 75 mm | 75 mm | 75 mm |
| Weights |
|
|
|
| Weight, approx. | 150 g | 150 g | 150 g |
