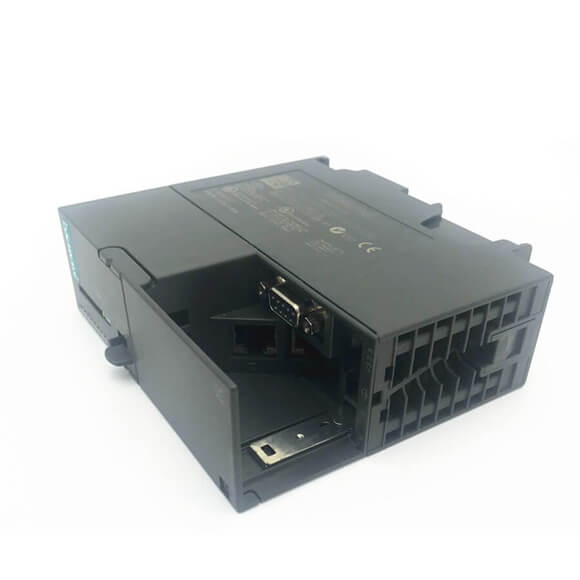

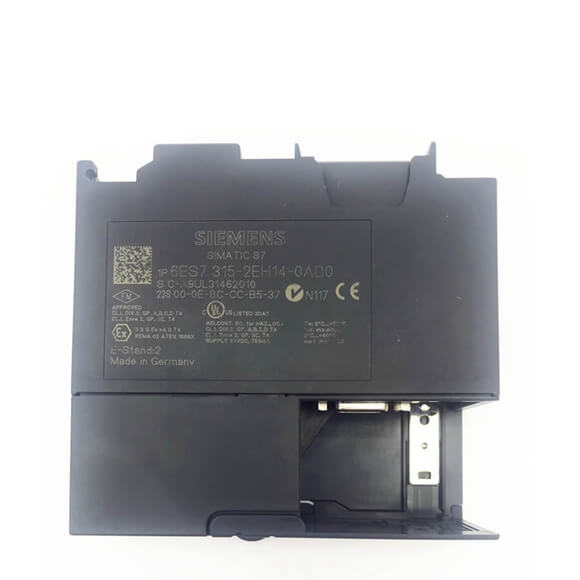

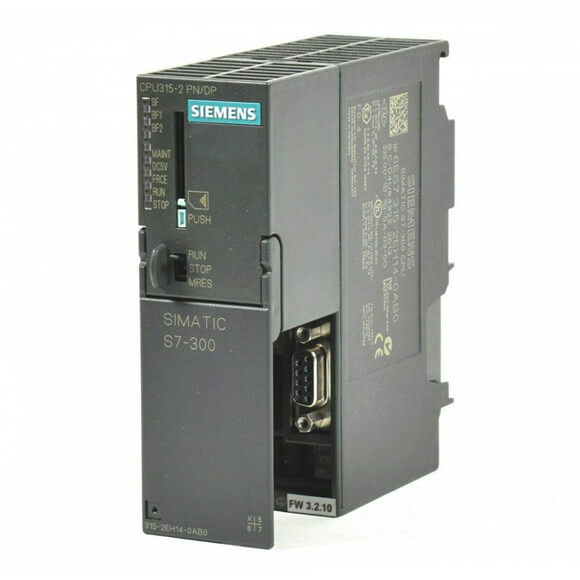

| Article number | 6ES7315-2EH14-0AB0 |
| Article number | CPU315-2 PN/DP, 384 KB |
| General information |
|
| HW functional status | 01 |
| Firmware version | V3.2 |
| Product function |
|
|
● Isochronous mode | Yes; Via PROFIBUS DP or PROFINET interface |
| Engineering with |
|
|
● Programming package | STEP 7 V5.5 or higher |
| Supply voltage |
|
| Rated value (DC) |
|
|
● 24 V DC | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | 2 A min. |
| Mains buffering |
|
|
● Mains/voltage failure stored energy time | 5 ms |
|
● Repeat rate, min. | 1 s |
| Input current |
|
| Current consumption (rated value) | 750 mA |
| Current consumption (in no-load operation), typ. | 150 mA |
| Inrush current, typ. | 4 A |
| I⊃2;t | 1 A⊃2;·s |
| Power loss |
|
| Power loss, typ. | 4.65 W |
| Memory |
|
| Work memory |
|
|
● integrated | 384 kbyte |
|
● expandable | No |
|
● Size of retentive memory for retentive data blocks | 128 kbyte |
| Load memory |
|
|
● Plug-in (MMC) | Yes |
|
● Plug-in (MMC), max. | 8 Mbyte |
|
● Data management on MMC (after last programming), min. | 10 y |
| Backup |
|
|
● present | Yes; Guaranteed by MMC (maintenance-free) |
|
● without battery | Yes; Program and data |
| CPU processing times |
|
| for bit operations, typ. | 0.05 µs |
| for word operations, typ. | 0.09 µs |
| for fixed point arithmetic, typ. | 0.12 µs |
| for floating point arithmetic, typ. | 0.45 µs |
| CPU-blocks |
|
| Number of blocks (total) | 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| DB |
|
|
● Number, max. | 1 024; Number range: 1 to 16000 |
|
● Size, max. | 64 kbyte |
| FB |
|
|
● Number, max. | 1 024; Number range: 0 to 7999 |
|
● Size, max. | 64 kbyte |
| FC |
|
|
● Number, max. | 1 024; Number range: 0 to 7999 |
|
● Size, max. | 64 kbyte |
| OB |
|
|
● Size, max. | 64 kbyte |
|
● Number of free cycle OBs | 1; OB 1 |
|
● Number of time alarm OBs | 1; OB 10 |
|
● Number of delay alarm OBs | 2; OB 20, 21 |
|
● Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 |
|
● Number of process alarm OBs | 1; OB 40 |
|
● Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
|
● Number of isochronous mode OBs | 1; OB 61 |
|
● Number of startup OBs | 1; OB 100 |
|
● Number of asynchronous error OBs | 6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO) |
|
● Number of synchronous error OBs | 2; OB 121, 122 |
