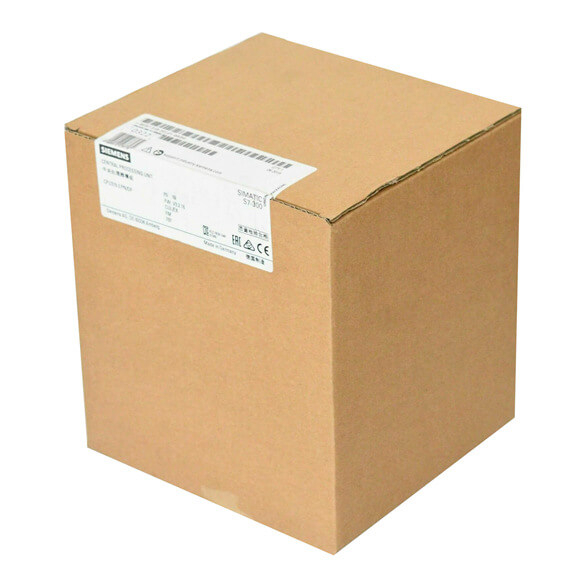

Siemens PLCs SIMATIC S7-300 CPU 319-3 PN/DP 6ES7318-3EL01-0AB0
Siemens PLC Controller Module LOGO Series
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
Article number | 6ES7318-3EL01-0AB0 |
CPU319-3 PN/DP, 2 MB | |
General information | |
HW functional status | 01 |
Firmware version | V3.2 |
Product function | |
● Isochronous mode
| Yes; Via 2nd PROFIBUS DP or PROFINET interface |
Engineering with | |
● Programming package
| STEP 7 V5.5 or higher |
Supply voltage | |
Rated value (DC) | |
● 24 V DC
| Yes |
permissible range, lower limit (DC) | 19.2 V |
permissible range, upper limit (DC) | 28.8 V |
external protection for power supply lines (recommendation) | 2 A min. |
Mains buffering | |
● Mains/voltage failure stored energy time
| 5 ms |
● Repeat rate, min.
| 1 s |
Input current | |
Current consumption (rated value) | 1 250 mA |
Current consumption (in no-load operation), typ. | 500 mA |
Inrush current, typ. | 4 A |
I⊃2;t | 1.2 A⊃2;·s |
Power loss | |
Power loss, typ. | 14 W |
Memory | |
Work memory | |
● integrated
| 2 048 kbyte |
● expandable
| No |
● Size of retentive memory for retentive data blocks
| 700 kbyte |
Load memory | |
● Plug-in (MMC)
| Yes |
● Plug-in (MMC), max.
| 8 Mbyte |
● Data management on MMC (after last programming), min.
| 10 y |
Backup | |
● present
| Yes |
● without battery
| Yes |
CPU processing times | |
for bit operations, typ. | 0.004 µs |
for word operations, typ. | 0.01 µs |
for fixed point arithmetic, typ. | 0.01 µs |
for floating point arithmetic, typ. | 0.04 µs |
CPU-blocks | |
Number of blocks (total) | 4 096; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
DB | |
● Number, max.
| 4 096; Number range: 1 to 16000 |
● Size, max.
| 64 kbyte |
FB | |
● Number, max.
| 4 096; Number range: 0 to 7999 |
● Size, max.
| 64 kbyte |
FC | |
● Number, max.
| 4 096; Number range: 0 to 7999 |
● Size, max.
| 64 kbyte |
OB | |
● Size, max.
| 64 kbyte |
● Number of free cycle OBs
| 1; OB 1 |
● Number of time alarm OBs
| 1; OB 10 |
● Number of delay alarm OBs
| 2; OB 20, 21 |
● Number of cyclic interrupt OBs
| 4; OB 32, 33, 34, 35 (OB 35: smallest settable clock pulse = 500 µs) |
● Number of process alarm OBs
| 1; OB 40 |
● Number of DPV1 alarm OBs
| 3; OB 55, 56, 57 |
● Number of isochronous mode OBs
| 1; OB 61 |
● Number of startup OBs
| 1; OB 100 |
● Number of asynchronous error OBs
| 6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO) |
● Number of synchronous error OBs
| 2; OB 121, 122 |
Nesting depth | |
● per priority class
| 16 |
● additional within an error OB
| 4 |
Counters, timers and their retentivity | |
S7 counter | |
● Number
| 2 048 |
Retentivity | |
— adjustable
| Yes |
— lower limit
| 0 |
— upper limit
| 2 047 |
— preset
| Z 0 to Z 7 |
Counting range | |
— adjustable
| Yes |
— lower limit
| 0 |
— upper limit
| 999 |
IEC counter | |
● present
| Yes |
● Type
| SFB |
● Number
| Unlimited (limited only by RAM capacity) |
