| Article number | 6ES7321-1BH02-0AA0 | 6ES7321-1BH50-0AA0 | 6ES7321-1BL00-0AA0 | 6ES7321-1BP00-0AA0 | 6ES7321-1BH10-0AA0 |

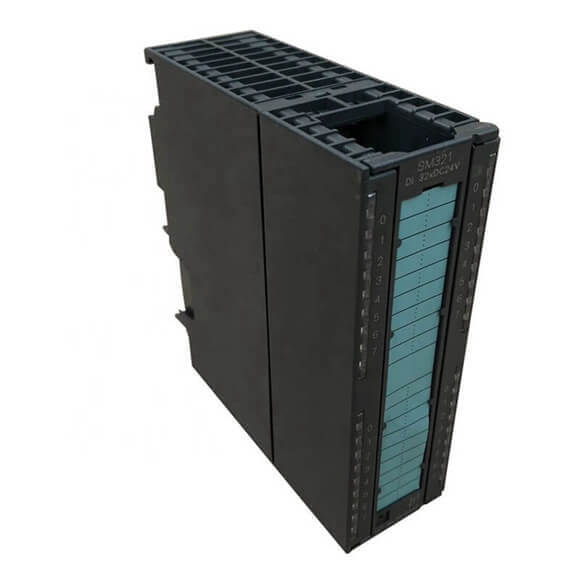

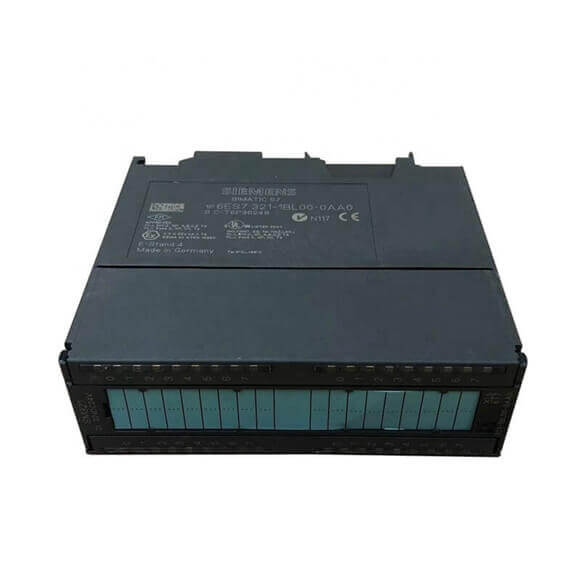

| SM321, 16DI, DC24V | SM321, 16DI, DC24V, Source Input | SM321, 32DI, DC24V | SM321, 64 DI, DC 24V, 3MS, P/M reading | SM321,16DI,DC24V, 0.05ms Input Delay. |
| Supply voltage |
|
|
|
|
|
| Load voltage L+ |
|
|
|
|
|
|
● Rated value (DC) | 24 V | 24 V | 24 V | 24 V | 24 V |
|
● permissible range, lower limit (DC) | 20.4 V | 20.4 V | 20.4 V |
| 20.4 V |
|
● permissible range, upper limit (DC) | 28.8 V | 28.8 V | 28.8 V |
| 28.8 V |
|
● Reverse polarity protection |
|
|
| Yes |
|
| Input current |
|
|
|
|
|
| from backplane bus 5 V DC, max. | 10 mA | 10 mA | 15 mA | 100 mA | 110 mA |
| Power loss |
|
|
|
|
|
| Power loss, typ. | 3.5 W | 3.5 W | 6.5 W | 7 W | 3.8 W |
| Digital inputs |
|
|
|
|
|
| Number of digital inputs | 16 | 16 | 32 | 64 | 16 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes | Yes | Yes | Yes | Yes |
| Number of simultaneously controllable inputs |
|
|
|
|
|
| all mounting positions |
|
|
|
|
|
|
— up to 40 °C, max. |
|
|
| 64 |
|
|
— up to 60 °C, max. |
|
|
| 32 |
|
| horizontal installation |
|
|
|
|
|
|
— up to 40 °C, max. | 16 | 16 | 32 | 64 | 16 |
|
— up to 60 °C, max. | 16 | 16 | 16 | 32 | 16 |
| vertical installation |
|
|
|
|
|
|
— up to 40 °C, max. | 16 | 16 | 32 | 32 | 16 |
| Input voltage |
|
|
|
|
|
|
● Type of input voltage | DC | DC | DC | DC | DC |
|
● Rated value (DC) | 24 V | 24 V | 24 V | 24 V | 24 V |
|
● for signal “0” | -30 to +5 V | -5 to +30V | -30 to +5 V | -30 to +5 V | -30 to +5 V |
|
● for signal “1” | 13 to 30V | -13 to -30V | 13 to 30V | 13 to 30V | 13 to 30V |
| Input current |
|
|
|
|
|
|
● for signal “1”, typ. | 7 mA | 7 mA | 7 mA | 4.2 mA | 7 mA |
| Input delay (for rated value of input voltage) |
|
|
|
|
|
| for standard inputs |
|
|
|
|
|
|
— parameterizable | No | No | No | No | No |
|
— Rated value |
|
|
| 4.2 ms |
|
|
— at “0” to “1”, min. | 1.2 ms | 1.2 ms | 1.2 ms | 1.2 ms | 25 µs |
|
— at “0” to “1”, max. | 4.8 ms | 4.8 ms | 4.8 ms | 4.8 ms | 75 µs |
|
— at “1” to “0”, min. | 1.2 ms | 1.2 ms | 1.2 ms | 1.2 ms | 25 µs |
|
— at “1” to “0”, max. | 4.8 ms | 4.8 ms | 4.8 ms | 4.8 ms | 75 µs |
| Cable length |
|
|
|
|
|
|
● shielded, max. | 1 000 m | 1 000 m | 1 000 m | 1 000 m | 1 000 m |
|
● unshielded, max. | 600 m | 600 m | 600 m | 600 m | 600 m |
| Encoder |
|
|
|
|
|
| Connectable encoders |
|
|
|
|
|
|
● 2-wire sensor | Yes | Yes | Yes | No | Yes |
|
— permissible quiescent current (2-wire sensor), max. | 1.5 mA | 1.5 mA | 1.5 mA |
| 1.5 mA |
| Interrupts/diagnostics/status information |
|
|
|
|
|
| Alarms | No | No | No | No | No |
| Diagnostics function | No | No | No | No | No |
| Alarms |
|
|
|
|
|
|
● Diagnostic alarm | No | No | No | No | No |
|
● Hardware interrupt | No | No | No | No | No |
| Diagnoses |
|
|
|
|
|
|
● Diagnostic information readable |
|
|
| No |
|
|
● Wire-break |
|
|
| No |
|
| Diagnostics indication LED |
|
|
|
|
|
|
● Group error SF (red) |
|
|
| No |
|
|
● Status indicator digital input (green) | Yes | Yes | Yes | Yes | Yes |
|
● Encoder supply Vs (green) |
|
|
| No |
|
| Potential separation |
|
|
|
|
|
| Potential separation digital inputs |
|
|
|
|
|
|
● between the channels | No | No | No | No | No |
|
● between the channels, in groups of | 16 | 16 | 16 | 16 | 16 |
|
● between the channels and backplane bus | Yes; Optocoupler | Yes; Optocoupler | Yes; Optocoupler | Yes; Optocoupler | Yes; Optocoupler |
| Isolation |
|
|
|
|
|
| Isolation tested with | 500 V DC | 500 V DC | 500 V DC | 500 V DC | 500 V DC |
| Connection method |
|
|
|
|
|
| required front connector | 20-pin | 20-pin | 40-pin | Cable: 6ES7392-4Bxx0-0AA0 terminal blocks: 6ES7392-1xN00-0AA0 | 20-pin |
| Dimensions |
|
|
|
|
|
| Width | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Height | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Depth | 120 mm | 120 mm | 120 mm | 112 mm | 120 mm |
| Weights |
|
|
|
|
|
| Weight, approx. | 200 g | 200 g | 260 g | 230 g | 200 g |
