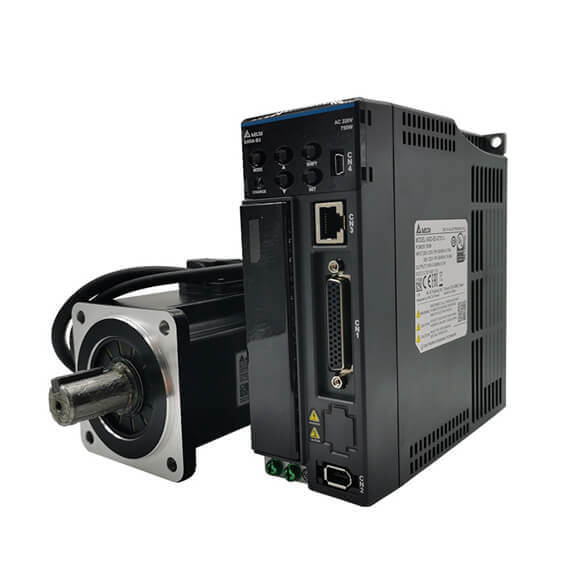

| Delta ASD-B3 servo Drive |
100 W |
200 W |
400 W |
750 W |
1 kW |
1.5 kW |
2 kW |
3 kW |
| Delta ASD-B3 servo Drive |
01 |
02 |
04 |
07 |
10 |
15 |
20 |
30 |
Phase / Voltage |
Unius phase / Three-phasis 220VAC |
Tres pascha 220VAC |
| Licet intentione |
Unius phase / Three phase 200 - 230VAC, -15% ad 10% |
Three-phase200 - 230VAC, -15% ad 10% |
| Input Current (3PH) (Unit: arma) |
0.81 |
1.61 |
4.32 |
8.76 |
9.21 |
9.72 |
14.7 |
16.68 |
| Input Current (1PH) (Unit: arma) |
1.39 |
2.77 |
8.28 |
16.68 |
17.49 |
18.72 |
|
|
| Continua Output Current (Unit: arma) |
0.9 |
1.55 |
2.65 |
5.1 |
7.3 |
8.3 |
13.4 |
19.4 |
| Maximilianus. Instantaneae Output Current (Unit: arma) |
3.88 |
7.07 |
10.6 |
16.4 |
21.21 |
27 |
38.3 |
58.9 |
| Refrigerationem Methodo |
Natural refrigeratio |
Fan refrigerationem |
| Coegi Consilium |
24-bit (16,777,216 pis / rev) |
| Pelagus Circuit Imperium |
SVPWM imperium |
| Tuning Modus |
Auto / Manual |
| Regenerativus Resistor |
N / A |
inaedificata |
| Pulsus Type (modo pulsus potestate modus) |
Pulsus + Directio; A Pascha + B pascha; CCW pulsus +CW pulse |
| Maximilianus. Pulsus output Frequency (modo pulsus potestate modus) |
Pulsus + direction: 4 Mpps; CCW pulsus + CW pulsus: 4 Mpps; A phase + B phase: single-fash 4 Mpps; Open collector: 200 Kpps |
| Imperium Source |
Pulsus externus (modo ad modum pulsus imperium) / mandare internum (PR modus) |
| delenimenta Methodo |
Low-pass, S- curva, mo- flters |
| E-Gear Ratio |
E-Gear ratio: N / M tempora, limitata ad (1 / 4 < N / M < 262144) N: 1 – 536870911 / M: 1 – 2147483647 |
| Torque |
Parameter occasus |
| Pasce deinceps Compensation |
Parameter occasus |
| Analog Monitor Output |
Signum vigilantia parametris erigi potest (volutatio output range: ±8V); resolutio: 10-bit |
| Praesidium Function |
Overcurrent, Overvoltage, Undervoltage, Overheat, Regeneratio Error, Overload, Nimia velocitas Deviationis, Nimia positio Declinatio, Encoder error, Temperatio error, Subitis cessatio, Transmittere / Reverse limitem Error, Serial communicationis error, RST Leak phase, Serial communication timeout, Brevis circuitus praesidium terminalium U, V, W |
| Communicationis Interface |
USB / RS-485 / CANopen / DMCNET / EtherCAT |
Installation Site |
Intus (fuge directum solis) vapor nullus mordax, fumos evitat, vapores amabiles, et pulvis) |
| altitudo |
Altitudo MM m vel inferiore supra mare campester |
| Pressura atmosphaerica |
86 kPa – 106 kPa |
| Operating Temperature |
0ºC ad 55ºC (Si operating temperatus est supra 45ºC, coactus refrigerationem requiritur) |
| Repono Temperature |
-20ºC ad 65ºC |
| Umor |
0 ad XC% RH (non-condensatione) |
| Vibratio |
9.80665 m / s2 (1 G) minus quam 20 Hz, 5.88 m / s2 (0.6 G) 20 ad 50 Hz. |
| Certifications |
IEC/EN 61800-5-1, UL 508C |
