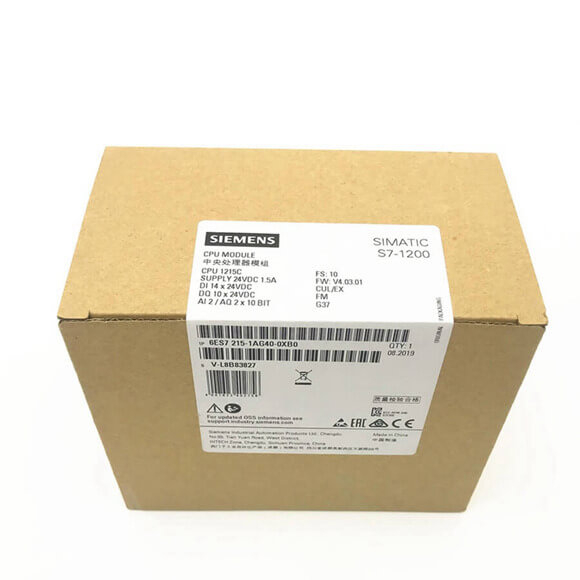

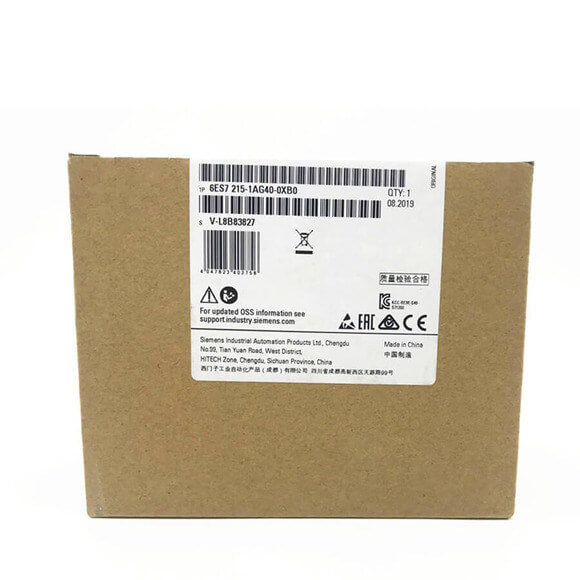

Article number | 6ES7215-1BG40-0XB0 | 6ES7215-1AG40-0XB0 | 6ES7215-1HG40-0XB0 |
| CPU 1215C, AC/DC/RLY, 14DI/10DO/2AI/2AO | CPU 1215C, DC/DC/DC, 14DI/10DO/2AI/2AO | CPU 1215C, DC/DC/RLY, 14DI/10DO/2AI/2AO |
General information |
|
|
|
Product type designation | CPU 1215C AC/DC/relay | CPU 1215C DC/DC/DC | CPU 1215C DC/DC/relay |
Firmware version | V4.4 | V4.4 | V4.4 |
Engineering with |
|
|
|
·
● Programming package · | STEP 7 V16 or higher | STEP 7 V16 or higher | STEP 7 V16 or higher |
Input current |
|
|
|
Current consumption (rated value) | 100 mA at 120 V AC; 50 mA at 240 V AC | 500 mA; CPU only | 500 mA; CPU only |
Current consumption, max. | 300 mA at 120 V AC; 150 mA at 240 V AC | 1 500 mA; CPU with all expansion modules | 1 500 mA; CPU with all expansion modules |
Inrush current, max. | 20 A; at 264 V | 12 A; at 28.8 V DC | 12 A; at 28.8 V DC |
I²t | 0.8 A²·s | 0.5 A²·s | 0.5 A²·s |
Output current |
|
|
|
for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM | 1 600 mA; Max. 5 V DC for SM and CM | 1 600 mA; Max. 5 V DC for SM and CM |
CPU processing times |
|
|
|
for bit operations, typ. | 0.08 µs; / instruction | 0.08 µs; / instruction | 0.08 µs; / instruction |
for word operations, typ. | 1.7 µs; / instruction | 1.7 µs; / instruction | 1.7 µs; / instruction |
for floating point arithmetic, typ. | 2.3 µs; / instruction | 2.3 µs; / instruction | 2.3 µs; / instruction |
CPU-blocks |
|
|
|
Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
OB |
|
|
|
·
● Number, max. · | Limited only by RAM for code | Limited only by RAM for code | Limited only by RAM for code |
Data areas and their retentivity |
|
|
|
Retentive data area (incl. timers, counters, flags), max. | 10 kbyte | 10 kbyte | 10 kbyte |
Flag |
|
|
|
·
● Number, max. · | 8 kbyte; Size of bit memory address area | 8 kbyte; Size of bit memory address area | 8 kbyte; Size of bit memory address area |
Local data |
|
|
|
·
● per priority class, max. · | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB |
·
— parameterizable · | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz |
Cable length |
|
|
|
·
● shielded, max. · | 500 m; 50 m for technological functions | 500 m; 50 m for technological functions | 500 m; 50 m for technological functions |
·
● unshielded, max. · | 300 m; for technological functions: No | 300 m; for technological functions: No | 300 m; for technological functions: No |
Encoder |
|
|
|
Connectable encoders |
|
|
|
·
● 2-wire sensor · | Yes | Yes | Yes |
1. Interface |
|
|
|
Interface type | PROFINET | PROFINET | PROFINET |
Physics | Ethernet | Ethernet | Ethernet |
OPC UA |
|
|
|
·
● Runtime license required · | Yes; “Basic” license required | Yes; “Basic” license required | Yes; “Basic” license required |
·
● OPC UA Server · | Yes; Data access (read, write, subscribe), runtime license required | Yes; Data access (read, write, subscribe), runtime license required | Yes; Data access (read, write, subscribe), runtime license required |
·
— Application authentication · | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
·
— User authentication · | “anonymous” or by user name & password | “anonymous” or by user name & password | “anonymous” or by user name & password |
·
● User data per job, max. · | See online help (S7 communication, user data size) | See online help (S7 communication, user data size) | See online help (S7 communication, user data size) |
Number of connections |
|
|
|
·
● overall · | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication |
Test commissioning functions |
|
|
|
Status/control |
|
|
|
·
● Status/control variable · | Yes | Yes | Yes |
·
● Variables · | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
·
● Limit class B, for use in residential areas · | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 |
·
● max. · | 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical | 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical | 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical |
Vibrations |
|
|
|
·
● Vibration resistance during operation acc. to IEC 60068-2-6 · | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail |
·
● Operation, tested according to IEC 60068-2-6 · | Yes | Yes | Yes |
Shock testing |
|
|
|
·
● tested according to IEC 60068-2-27 · | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
Pollutant concentrations |
|
|
|
·
● SO2 at RH < 60% without condensation · | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
Weights |
|
|
|
Weight, approx. | 550 g | 500 g | 585 g |
