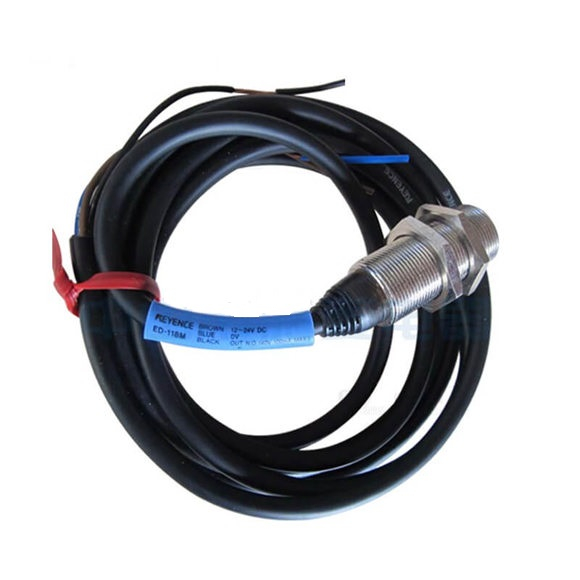

| Model | ED-118M | ED-130M | ED-118U | ED-130U |
| Type | Shielded | Non-shielded |
|
|
| Shape | M18Threaded type | M30Threaded type | M18Threaded type | M30Threaded type |
| Detecting distance | 5 mm 0.20″ ±15% | 11 mm 0.43″ ±15% | 20 mm 0.79″ ±15% |
|
| Detectable object | All metals *1 |
|
|
|
| Standard target (aluminum, t=1 mm <font color=”#0099ff”>0.04″</font>) | 18 x 18 mm 0.71″ x 0.71″ | 30 x 30 mm 1.18″ x 1.18″ | 50 x 50 mm 1.97″ | 70 x 70 mm 2.76″ |
| Hysteresis | 15% max. of detecting distance |
|
|
|
| Response frequency | 100 Hz | 150 Hz | 200 Hz | 150 Hz |
| Operation mode | N.O. |
|
|
|
| Indicator lamp | Operation indicator: Red LED, Stable operation indicator: Green LED |
|
|
|
| Temperature characteristics | ±20% max. of detecting distance at 23°C 73.4°F, within 0 to 50°C 32 to 122°F |
|
|
|
| Control output | NPN open collector 100 mA max. (40 V max.), Residual voltage: 1 V max. |
|
|
|
| Protection circuit | Reversed polarity, surge absorber |
|
|
|
| Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
|
|
|
| Current consumption | 35 mA or less |
|
|
|
| Enclosure rating | IP67 |
|
|
|
| Ambient temperature | 0 to +50 °C 32 to 122 °F (No freezing) |
|
|
|
| Relative humidity | 35 to 95 % RH (No condensation) |
|
|
|
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
|
|
|
| Shock resistance | 1,000 m/s2, 3 times in each of the X, Y, and Z directions |
|
|
|
| Case material | Nickel-plated brass |
|
|
|
| Accessories | Screw nut x 2,
toothed washer x 1 |
|
|
|
| Weight | Approx. 150 g (including 2-m 6.6′ cable and nuts) | Approx. 300 g (including 2-m 6.6′ cable and nuts) | Approx. 140 g (including 2-m 6.6′ cable and nuts) | Approx. 270 g (including 2-m 6.6′ cable and nuts) |
