Mitsubishi CP30-BA1P21M5A CP30-BA Series Circuit Protector 1-Pole 5A

Series#: Circuit Breaker -> Mitsubishi Circuit Breakers
- Mitsubishi CP30-BA1P21M5A CP30-BA Series Circuit Protector 1-Pole 5A
- We have large inventory for Mitsubishi CP30-BA Series Circuit Protectors, Mitsubishi miniature circuit breakers and related accessories.
- 100% Original and new,In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
CP30-BA1P21M5A
Brand:
Mitsubishi Electric

Product Description

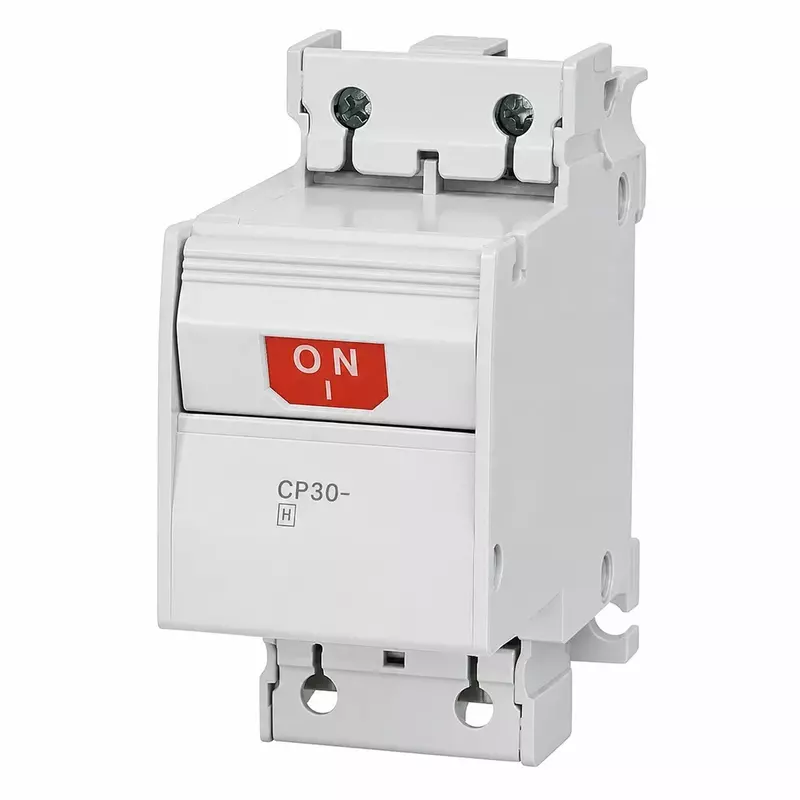

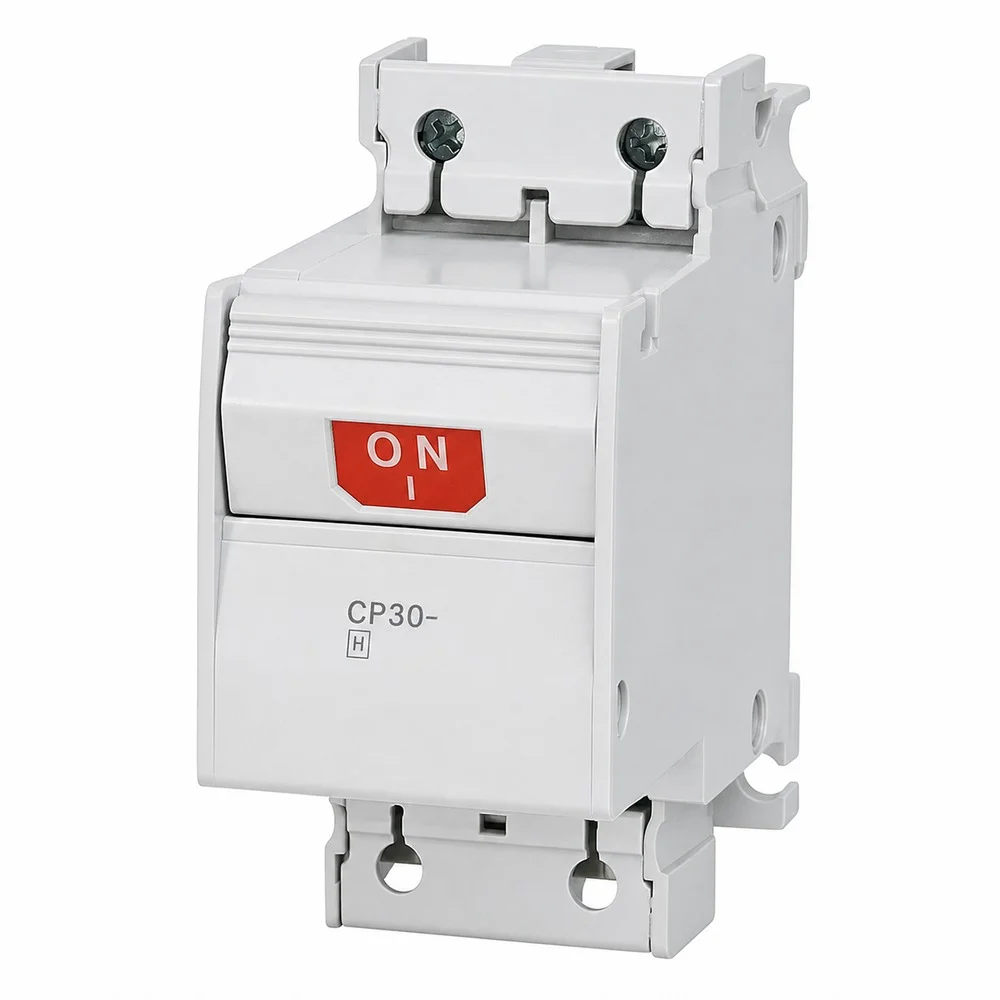

The Mitsubishi CP30-BA1P21M5A is a 1-pole 5A circuit protector from the CP30-BA series, rated 250VAC/65VDC with 2.5kA breaking capacity and M-type thermal-magnetic trip characteristics. The 17.5mm DIN-rail housing provides compact protection for control circuits. Typical applications include small motor starter auxiliary circuits, control transformer secondary protection, multiple relay/solenoid bank protection, industrial power supply input protection, and general control panel branch circuit protection where 5A overcurrent protection is required.

Technical Specifications

Mitsubishi Electric CP30-BA1P21M5A
Circuit Breaker -> Mitsubishi Circuit Breakers \| The Mitsubishi CP30-BA1P21M5A is a 1-pole 5A circuit protector from the CP30-BA series, rated 250VAC/65VDC with 2.5kA breaking capacity and M-type thermal-magnetic trip characteristics. The 17.5mm DIN
Feature	Specification
Feature	Specification
Series	CP30-BA
Model	CP30-BA1P21M5A
Type	Circuit Protector (Miniature Circuit Breaker)
Number of Poles	1-Pole (1P)
Rated Current	5 A
Rated Voltage (AC)	250 VAC
Rated Voltage (DC)	65 VDC (1P)
Trip Characteristic	M-type (Medium trip)
Breaking Capacity (Icu)	2.5 kA (230VAC, IEC60947)
Width per Pole	17.5 mm
Mounting	DIN Rail (35mm)
Connection	Screw-clamp terminals
Standards	IEC60947-2, UL1077
