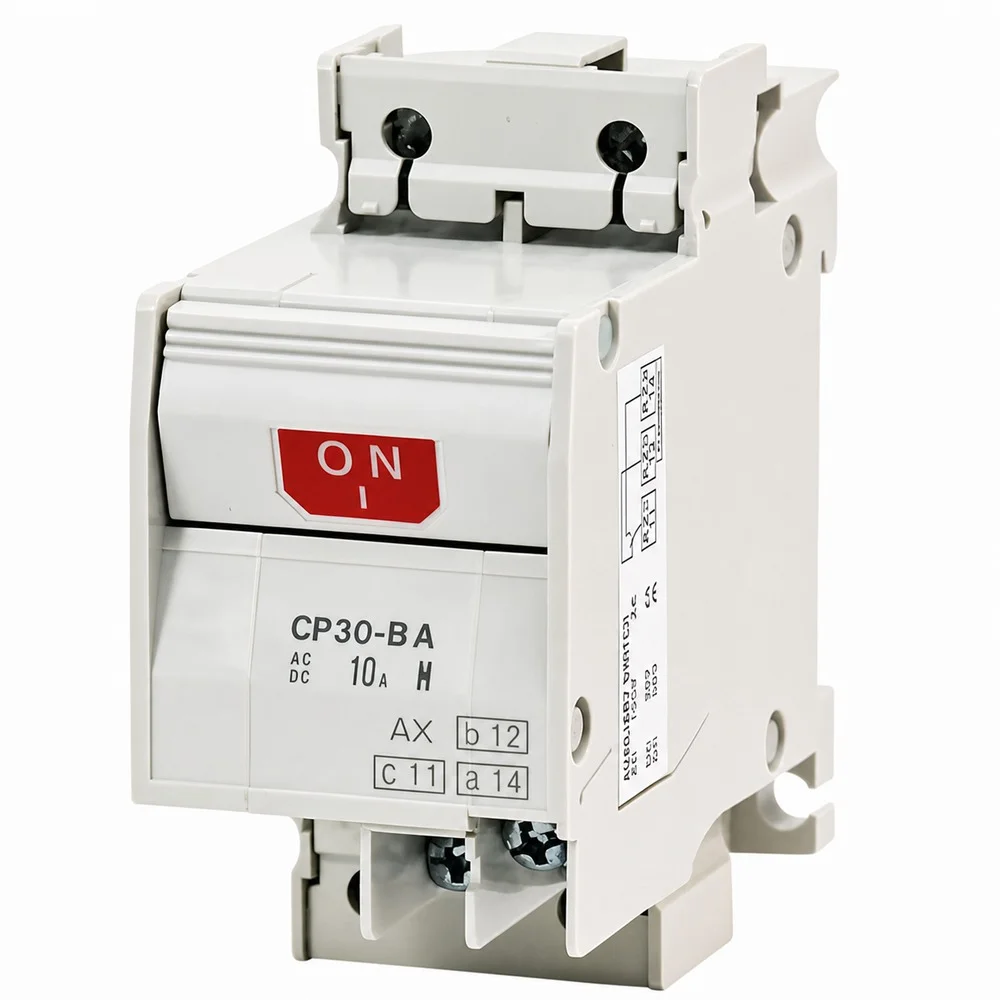

Mitsubishi CP30-BA2P21MD3A CP30-BA Series Circuit Protector 2-Pole 3A DC

Series#: Circuit Breaker -> Mitsubishi Circuit Breakers
- Mitsubishi CP30-BA2P21MD3A CP30-BA Series Circuit Protector 2-Pole 3A DC
- We have large inventory for Mitsubishi CP30-BA Series Circuit Protectors, Mitsubishi DC rated miniature circuit breakers and related accessories.
- 100% Original and new,In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
CP30-BA2P21MD3A
Brand:
Mitsubishi Electric

Product Description

The Mitsubishi CP30-BA2P21MD3A is a 2-pole 3A DC-optimized circuit protector with MD-type (DC Medium) trip characteristic, rated for DC circuits up to 125VDC with poles in series. The 3A rating provides protection for medium-power DC control circuits. Applications include DC power supply output distribution, multiple DC sensor array protection, small DC actuator and valve circuits, battery charger output protection, and industrial DC automation panel branch protection.

Technical Specifications

Mitsubishi Electric CP30-BA2P21MD3A
Circuit Breaker -> Mitsubishi Circuit Breakers \| The Mitsubishi CP30-BA2P21MD3A is a 2-pole 3A DC-optimized circuit protector with MD-type (DC Medium) trip characteristic, rated for DC circuits up to 125VDC with poles in series. The 3A rating provid
Feature	Specification
Feature	Specification
Series	CP30-BA
Model	CP30-BA2P21MD3A
Type	Circuit Protector (Miniature Circuit Breaker, DC Rated)
Number of Poles	2-Pole (2P)
Rated Current	3 A
Rated Voltage (AC)	250 VAC
Rated Voltage (DC)	125 VDC (2P in series)
Trip Characteristic	MD-type (DC Medium trip)
Breaking Capacity (Icu)	2.5 kA (230VAC, IEC60947)
Width	35 mm (2 x 17.5mm)
Mounting	DIN Rail (35mm)
Connection	Screw-clamp terminals
Standards	IEC60947-2, UL1077
