| Type |
Standard |
L-shaped | T-shaped, slot center 7 mm |
Close-mounting | T-shaped, slot center 10 mm |
F-shaped |
R-shaped |
|
| NPN Connector models | EE-SX670
EE-SX670A EE-SX470 | EE-SX671
EE-SX671A EE-SX471 | EE-SX672
EE-SX672A EE-SX472 | EE-SX673
EE-SX673A EE-SX473 | EE-SX674
EE-SX674A EE-SX474 |
EE-SX675 |
EE-SX676 |
EE-SX677 |

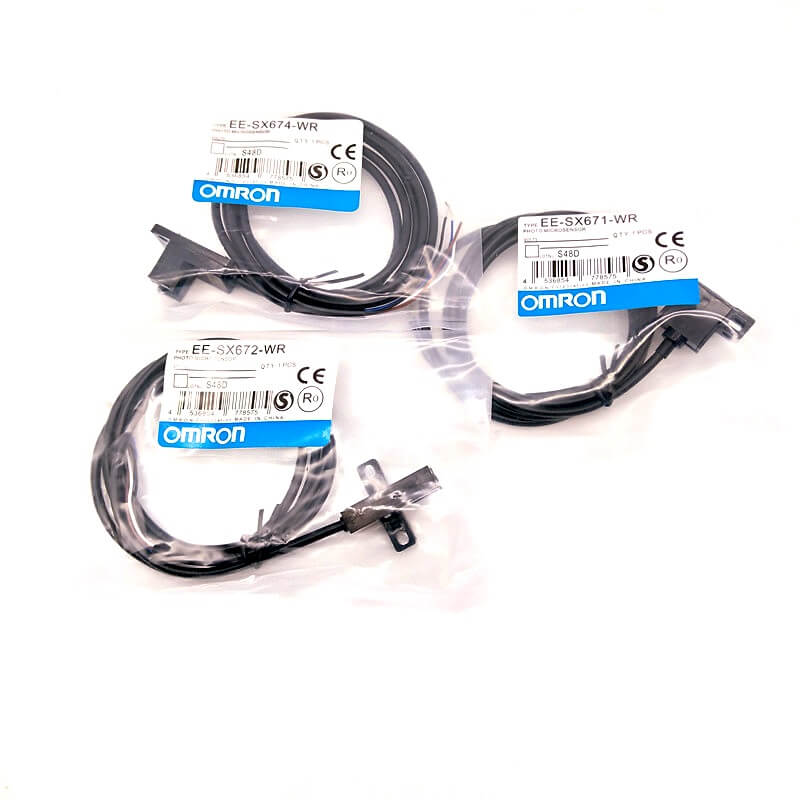

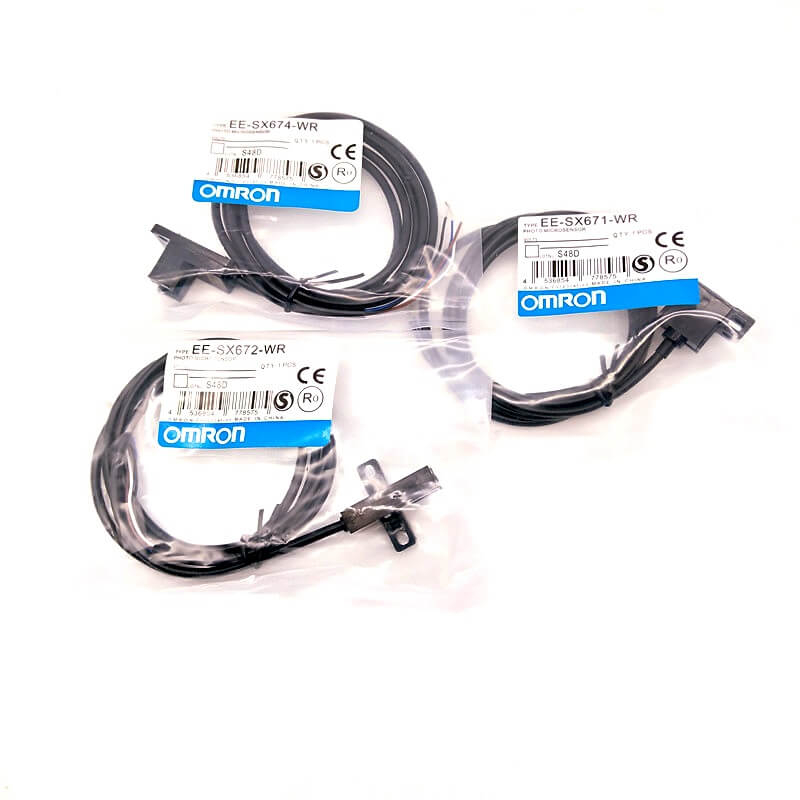

| NPN Pre-wired models | EE-SX670- WR | EE-SX671- WR | EE-SX672- WR | EE-SX673- WR | EE-SX674- WR | EE-SX675- WR | EE-SX676- WR | EE-SX677- WR |
| PNP Connector models | EE-SX670P EE-SX670R | EE-SX671P EE-SX671R | EE-SX672P EE-SX672R | EE-SX673P EE-SX673R | EE-SX674P EE-SX674R | EE-SX675P | EE-SX676P | EE-SX677P |
| PNP Pre-wired models | EE-SX670P- WR | EE-SX671P- WR | EE-SX672P- WR | EE-SX673P- WR | EE-SX674P- WR | EE-SX675P- WR | EE-SX676P- WR | EE-SX677P- WR |
| Sensing distance | 5 mm (slot width) |
|
|
|
|
|
|
|
| Sensing object | Opaque: 2 ´ 0.8 mm min. |
|
|
|
|
|
|
|
| Differential distance | 0.025 mm |
|
|
|
|
|
|
|
| Light source | Infrared LED with a peak wavelength of 940 nm |
|
|
|
|
|
|
|
| Indicator *1 | Light indicator (red) (turns ON when light is interrupted for models with A or R suffix) |
|
|
|
|
|
|
|
| Supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. |
|
|
|
|
|
|
|
| Current consumption | 12 mA max. (Connector models, L terminal open), 35 mA max. (NPN pre-wired models), 30 mA max. (PNP pre-wired models) |
|
|
|
|
|
|
|
|
Control output | NPN open collector: 5 to 24 VDC, 100 mA max.
100 mA load current with a residual voltage of 0.8 V max. 40 mA load current with a residual voltage of 0.4 V max. OFF current (leakage current): 0.5 mA max. PNP open collector: 5 to 24 VDC, 50 mA max. 50 mA load current with a residual voltage of 1.3 V max. OFF current (leakage current): 0.5 mA max. |
|
|
|
|
|
|
|
| Protection circuits | Load short circuit protection (Connector models), No circuit protection (Pre-wired models) |
|
|
|
|
|
|
|
| Response frequency *2 | 1 kHz min. (3 kHz average) |
|
|
|
|
|
|
|
| Ambient illumination | 1,000 lx max. with fluorescent light on the surface of the receiver. |
|
|
|
|
|
|
|
| Ambient temperature range | Operating: -25 to +55°C, Storage: -30 to +80°C (with no icing or condensation) |
|
|
|
|
|
|
|
| Ambient humidity range | Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation) |
|
|
|
|
|
|
|
| Vibration resistance | Destruction: 20 to 2,000 Hz (peak acceleration: 100 m/s2)
1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions |
|
|
|
|
|
|
|
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
|
|
|
|
|
|
|
| Degree of protection | IEC60529 IP50 |
|
|
|
|
|
|
|
| Connecting method | Connector Models (direct soldering possible), Pre-wired Models (Standard cable length: 1 m), Models with Connectors (Standard cable length: 0.1 m) |
|
|
|
|
|
|
|
| Weight Connector models | Approx. 3.1 g | Approx. 3 g | Approx. 2.4 g | Approx. 2.3 g | Approx. 3 g | Approx. 2.7 g | Approx. 2.2 g | Approx. 2.2 g |
| Weight Pre-wired models | Approx. 18.9 g | Approx. 17.3 g | Approx. 17.8 g | Approx. 16.8 g | Approx. 17.1 g | Approx. 18.3 g | Approx. 16.9 g | Approx. 16.9 g |
