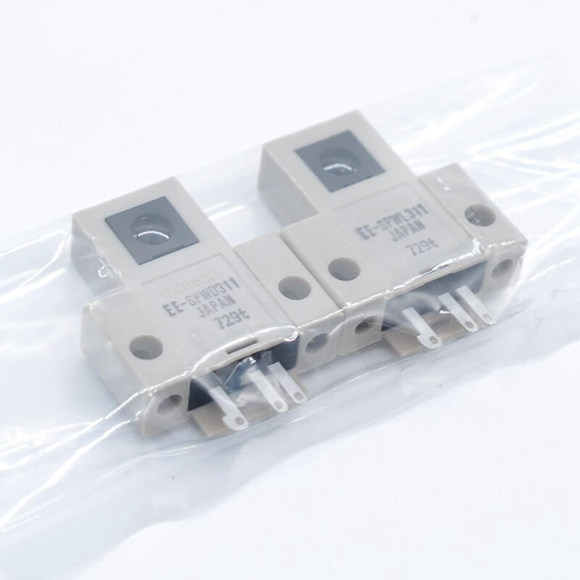

| Models | EE-SPW311, EE-SPW411 |
| Sensing distance | 1 m |
| Sensing object | Opaque: 5 mm dia. min. |
| Directional angle | 5 to 20 ° |
| Light source | GaAs infrared LED (pulse lighting) with a peak wavelength of 940 nm |
| Indicator *1 | Light indicator (red) |
| Supply voltage | 5 ( -5%) to 24 (+10%) VDC, ripple (p-p): 5% max. |
| Current consumption | Emitter: 20 mA max., Receiver: 20 mA max. |
| Control output | NPN open collector:
Load power supply voltage: 5 to 24 VDC
Load current: 100 mA max.
OFF current: 0.5 mA max.
100 mA load current with a residual voltage of 0.8 V max.
10 mA load current with a residual voltage of 0.4 V max. |
| Response frequency *2 | 100 Hz min. |
| Ambient illumination | 3,000 lx max. with incandescent light on the surface of the receiver |
Ambient temperature
range | Operating: – 10 to +55 ° C
Storage: – 25 to +65 ° C |
| Ambient humidity range | Operating: 5% to 85%
Storage: 5% to 95% |
| Vibration resistance | Destruction: 200 to 2,000 Hz (peak acceleration: 100 m/s2)
1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC IP60 |
| Connecting method | Special connector (soldering not possible) |
| Weight (packaged) | Approx. 8.8 g |
