Type |
Standard |
L-shaped | T-shaped, slot center 7 mm | Close-mount- ing | T-shaped, slot center 10 mm |
F-shaped |
R-shaped |

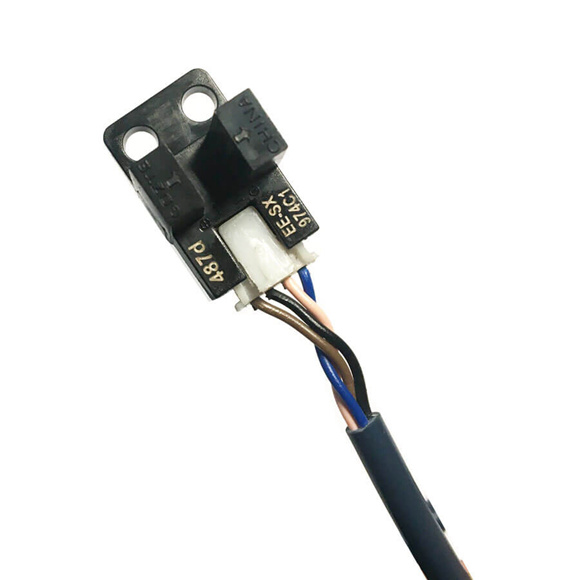

| NPN | EE-SX970-C1 | EE-SX971-C1 | EE-SX972-C1 | EE-SX974-C1 | EE-SX975-C1 | EE-SX976-C1 | EE-SX977-C1 |
| PNP | EE-SX970P-C1 | EE-SX971P-C1 | EE-SX972P-C1 | EE-SX974P-C1 | EE-SX975P-C1 | EE-SX976P-C1 | EE-SX977P-C1 |
| Sensing distance | 5 mm (slot width) |
|
|
|
|
|
|
| Sensing object | Opaque: 2 ´ 0.8 mm min. |
|
|
|
|
|
|
| Differential distance | 0.025 mm max. | *1 |
|
|
|
|
|
| Light source (Peak wave- length) | Infrared LED with a peak wavelength of 940 nm |
|
|
|
|
|
|
| Indicator | Light indicator (orange LED) |
|
|
|
|
|
|
| Supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. |
|
|
|
|
|
|
| Current consumption | 21 mA max. |
|
|
|
|
|
|
|
Control output | Load power supply voltage: 5 to 24 VDC, Load current: 50 mA max., Off-state current : 0.5mA max,
50 mA load current with a residual voltage of 1.0 V max., 5 mA load current with a residual voltage of 0.4 V max. |
|
|
|
|
|
|
| Protection circuit | Power supply reverse polarity protection; output reverse polarity protection; overcurrent protection (only OUT2 on models with NPN output) |
|
|
|
|
|
|
| Response frequency | 1 kHz min. (3 kHz average) *2 |
|
|
|
|
|
|
| Ambient illumination | 1,000 lx max. with fluorescent light on the surface of the receiver |
|
|
|
|
|
|
| Ambient temperature range | Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation) |
|
|
|
|
|
|
| Ambient humidity range | Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation) |
|
|
|
|
|
|
| Vibration resistance (De- struction) | 10 to 2,000 Hz 0.75-mm single amplitude (15-min periods, 10 cycles) each in X, Y, and Z directions |
|
|
|
|
|
|
| Shock resistance (De- struction) | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
|
|
|
|
|
|
| Degree of protection | IEC 60529 IP50 |
|
|
|
|
|
|
| Connecting method | Connector |
|
|
|
|
|
|
| Weight (Packed state) | Approx. 3 g |
|
|
|
|
|
|
| Case/Cover | Polybutylene terephthalate (PBT) |
|
|
|
|
|
|
| Emitter/receiver | Polycarbonate (PC) |
|
|
|
|
|
|
