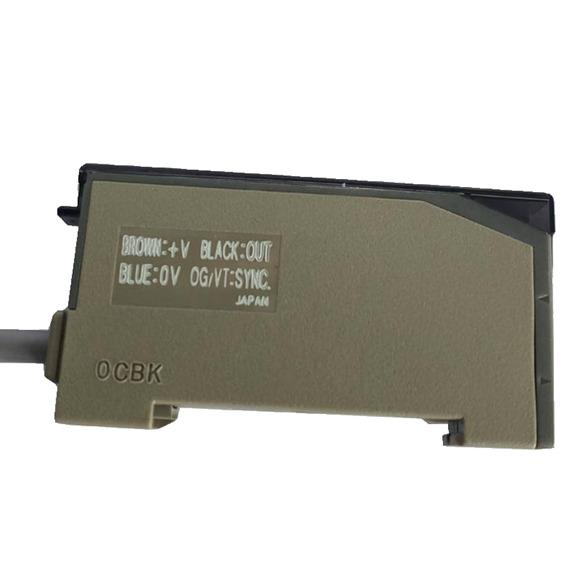

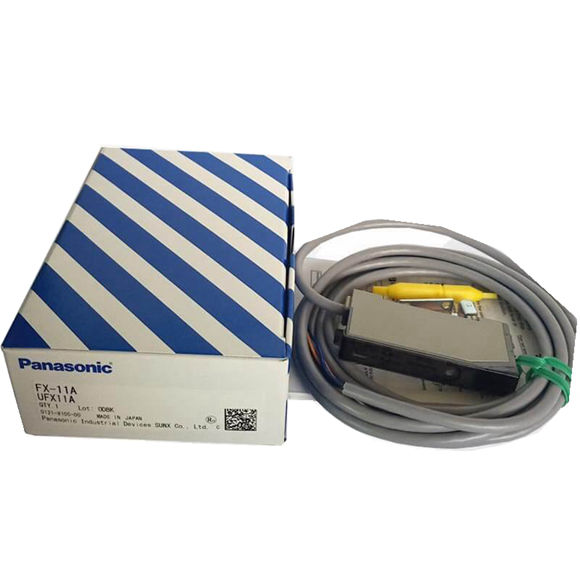

| Model No. | FX-11A |
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Current consumption | 35 mA or less |
| Analog output | Analog voltage
・Output voltage: 1 to 5 V (proportional to incident light intensity)
・Output current: 5 mA or less
・Output impedance: 47 Ω
・Load resistance: 2 kΩ or more
・Temperature characteristics: 0.3 % F.S./℃ or less |
| Response time | Switchable either 1 ms or less, or 10 ms or less |
| Incident beam indicator | Red LED
(brightens up in proportion to analog output voltage) |
| Saturation indicator | Green LED
(lights up when the analog output voltage reaches 5 V) |
| Sensitivity adjuster | 8-turn potentiometer with indicator |
| Interference prevention function | Incorporated |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉
(No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 1,000 lx at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure (Note 2) |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note 2) |
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each |
| Emitting element | Red LED
(Peak emission wavelength: 660 nm 0.026 mil, modulated) |
| Material | Enclosure: Heat-resistant ABS, Case cover: Polycarbonate, Fiber lock lever: PES |
| Cable | 0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (Note 3) |
| Weight | Net weight: 60 g approx., Gross weight: 100 g approx. |
| Accessories | MS-DIN-2 (Amplifier mounting bracket): 1 pc., Adjusting screwdriver: 1 pc. |
