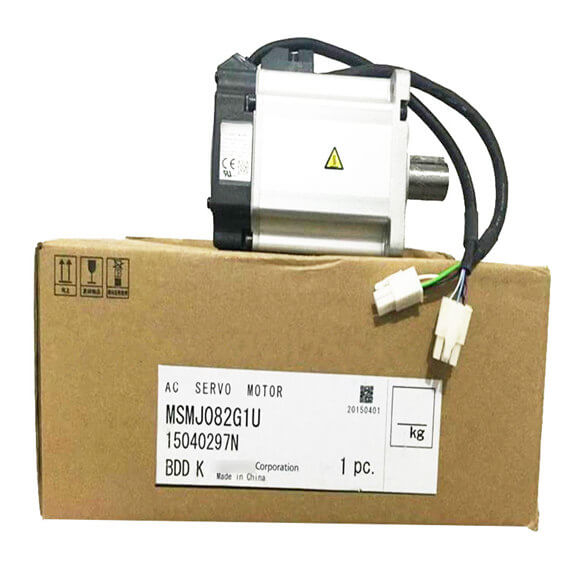

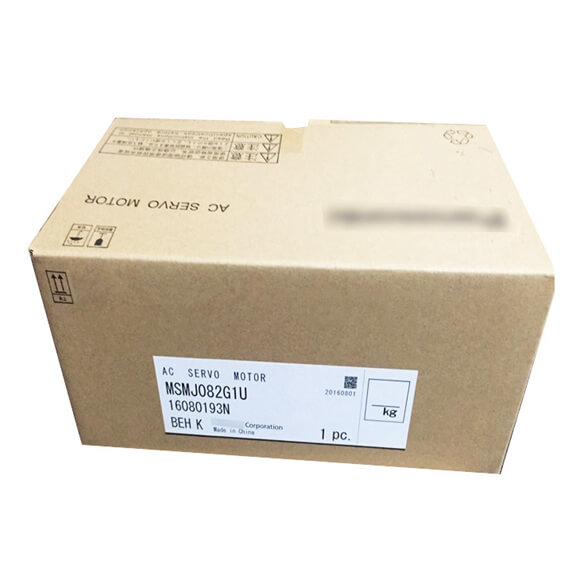

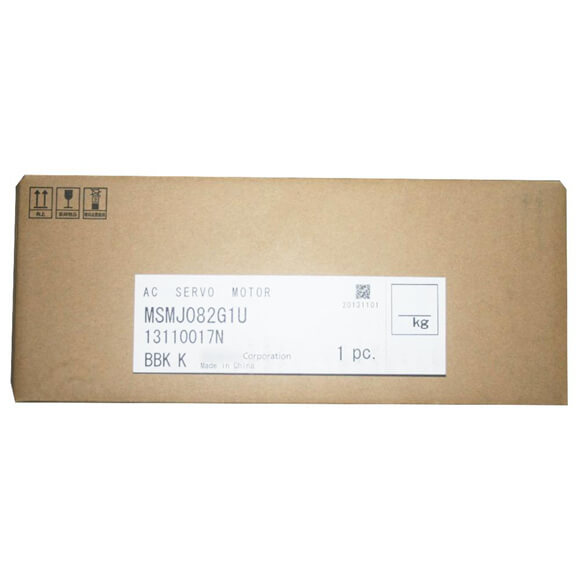

Panasonic Servo Motor MINAS A5 750W Break MSMJ082G1V/MSMD082G1V



Series#: Panasonic Servomotor



  • Panasonic Servo Motor MINAS A5 750W Break MSMJ082G1V/MSMD082G1V
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs



Availability:
Inquire

Product Description



Series#: Panasonic Servomotor


  • Panasonic Servo Motor MINAS A5 750W Break MSMJ082G1V/MSMD082G1V

  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.


Download A Munual


Panasonic Servo Motor MINAS A5 750W AC200 V
Panasonic Servo Motor MINAS A5


IP65

 MSMD082G1□ MSMD082S1□
Panasonic Servo Motor MINAS A5


IP67

 – –
A5Ⅱ, A5 series MCD◇T3520
A5ⅡE, A5E series MCD◇T3520E –
Frame symbol C-frame
Power supply capacity (kVA) 1.3
Rated output (W) 750
Rated torque (N•m) 2.4
Momentary Max. peak torque (N•m) 7.1
Rated current (A(rms)) 4.0
Max. current (A(o-p)) 17.0
Regenerative brake frequency (times/min) Note)1


Without option

 No limit Note)2
DV0P4283 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 4500
Moment of inertia


of rotor (×10−4 kg•m2)

Without brake

 0.87
With brake 0.97
Recommended moment of inertia ratio of the load and the rotor Note)3 20 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
Resolution per single turn 1048576 131072


Relevant documents
download Panasonic-minas-a5-servomotor-datasheet.pdf

Related Products

Panasonic Servo Motor MINAS A5 200W MSMJ022G1U/MSMD022G1U
Panasonic Servo Motor MINAS A5 200W MSMJ022G1U/MSMD022G1U
Panasonic Servo Motor MINAS A5 5KW MDME502GCH/MDME502GCHM
Panasonic Servo Motor MINAS A5 5KW MDME502GCH/MDME502GCHM
Panasonic Servo Motor MINAS A6 400w MSMF042L1U2M
Panasonic Servo Motor MINAS A6 400w MSMF042L1U2M
Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM
Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM
Panasonic Servo Motor MINAS A5 1.5kW Break MHME152GCHM/MHME152GCH/G1H/GCDM
Panasonic Servo Motor MINAS A5 1.5kW Break MHME152GCHM/MHME152GCH/G1H/GCDM
Panasonic Servo Motor MINAS A5 2KW MDME202GCG/MDME202GCGM
Panasonic Servo Motor MINAS A5 2KW MDME202GCG/MDME202GCGM
Panasonic Servo Motor MINAS A5 2KW Break MSME202GCG/MSME202GCGM
Panasonic Servo Motor MINAS A5 2KW Break MSME202GCG/MSME202GCGM
Panasonic Servo Motor MINAS A5 1.5KW MSME152GCHM/MSME152GCH
Panasonic Servo Motor MINAS A5 1.5KW MSME152GCHM/MSME152GCH
Panasonic Servo Motor MINAS A5 2kw MHME202GCGM/GCC/MDME202GCG/G1G
Panasonic Servo Motor MINAS A5 2kw MHME202GCGM/GCC/MDME202GCG/G1G

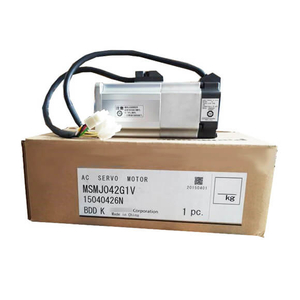

Panasonic Servo Motor MINAS A5 400W Break MSMJ042G1V/MSMD042G1V/G1D
