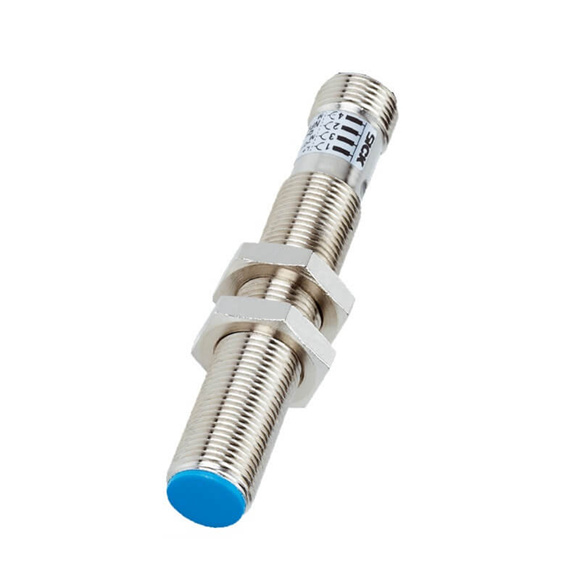

Sick Magnetic proximity sensors IM12-08NNS-ZW1/-ZC1/-ZCK IM12-04NNS-ZW1

Series#: Sick Magnetic proximity sensors

Sick Magnetic proximity sensors IM12-08NNS-ZW1/-ZC1/-ZCK IM12-04NNS-ZW1
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.
All parts are 100% Original and new in stock by Sick and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Availability:



Inquire

Product Description

Series#: Sick Magnetic proximity sensors

Sick Magnetic proximity sensors IM12-08NNS-ZW1/-ZC1/-ZCK IM12-04NNS-ZW1
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.

Download a Munual

Housing	Cylindrical thread design
Housing	Standard
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range Sn	8 mm
Installation type	Non-flush
Switching frequency	1,000 Hz
Connection type	Cable, 3-wire, 2 m
Switching output	NPN
Output function	NO
Electrical wiring	DC 3-wire
Enclosure rating	IP67 1)

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 % 1)
Voltage drop	≤ 1.2 V 2)
Current consumption	10 mA 3)
Time delay before availability	≤ 100 ms
Hysteresis	1 % … 15 %
Reproducibility	≤ 5 % 4) 5)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 200 mA
Cable material	PVC
Conductor size	0.22 mm²
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +70 °C
Housing material	Brass, Nickel-plated brass
Sensing face material	Plastic
Housing length	50 mm
Thread length	35 mm
Tightening torque, max.	10 Nm

Relevant documents

dataSheet_IM12-04NNS-ZW1_6011976_en-1.pdf
