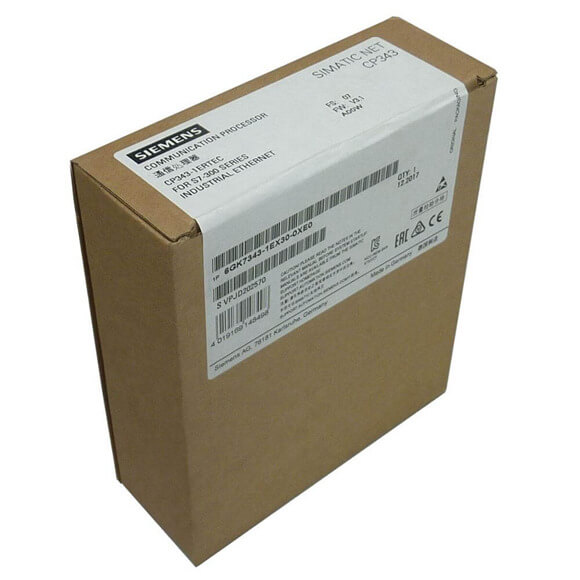

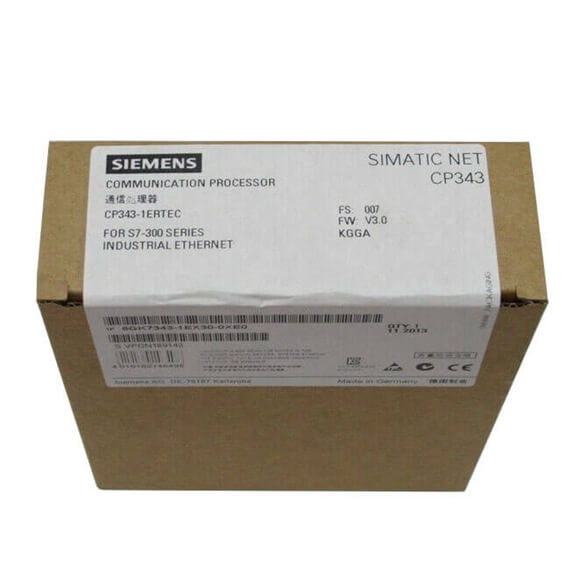

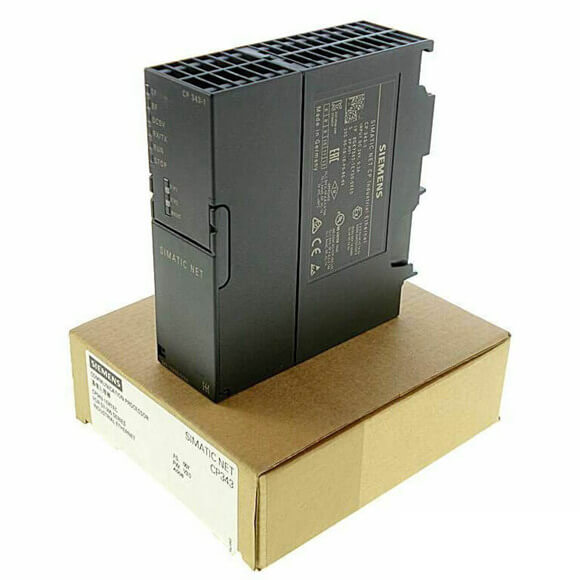

| Article number | 6GK7343-1EX30-0XE0 |
| Product type designation | CP 343-1 |
| Transfer rate |
|
| Transfer rate |
|
|
● at the 1st interface | 10 … 100 Mbit/s |
| Interfaces |
|
| Number of interfaces acc. to Industrial Ethernet | 2 |
| Number of electrical connections |
|
|
● at the 1st interface acc. to Industrial Ethernet | 2 |
|
● for power supply | 1 |
| Type of electrical connection |
|
|
● of Industrial Ethernet interface | RJ45 port |
|
● at the 1st interface acc. to Industrial Ethernet | RJ45 port |
| Type of electrical connection |
|
|
● for power supply | 2-pole plugable terminal block |
| Supply voltage, current consumption, power loss |
|
| Type of voltage of the supply voltage | DC |
| Supply voltage 1 from backplane bus | 5 V |
| Supply voltage | 24 V |
| Supply voltage external | 24 V |
| Supply voltage external at DC Rated value | 24 V |
| Relative positive tolerance at DC at 24 V | 20 % |
| Relative negative tolerance at DC at 24 V | 15 % |
| Consumed current |
|
|
● from backplane bus at DC at 5 V typical | 0.2 A |
|
● from external supply voltage at DC at 24 V typical | 0.16 A |
|
● from external supply voltage at DC at 24 V maximum | 0.2 A |
| Power loss [W] | 5.8 W |
| Ambient conditions |
|
| Ambient temperature |
|
|
● for vertical installation during operation | 0 … 40 °C |
|
● for horizontally arranged busbars during operation | 0 … 60 °C |
|
● during storage | -40 … +70 °C |
|
● during transport | -40 … +70 °C |
| Relative humidity |
|
|
● at 25 °C without condensation during operation maximum | 95 % |
| Protection class IP | IP20 |
| Design, dimensions and weights |
|
| Module format | Compact module S7-300 single width |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Net weight | 0.22 kg |
| Mounting type |
|
|
● S7-300 rail mounting | Yes |
| Performance data open communication |
|
| Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum | 16 |
| Amount of data |
|
|
● as user data per ISO connection for open communication by means of SEND/RECEIVE blocks maximum | 8 Kibyte |
|
● as user data per ISO on TCP connection for open communication by means of SEND/RECEIVE blocks maximum | 8 Kibyte |
|
● as user data per TCP connection for open communication by means of SEND/RECEIVE blocks maximum | 8 Kibyte |
|
● as user data per UDP connection for open IE communication by means of SEND/RECEIVE blocks maximum | 2 Kibyte |
| Number of Multicast stations | 16 |
