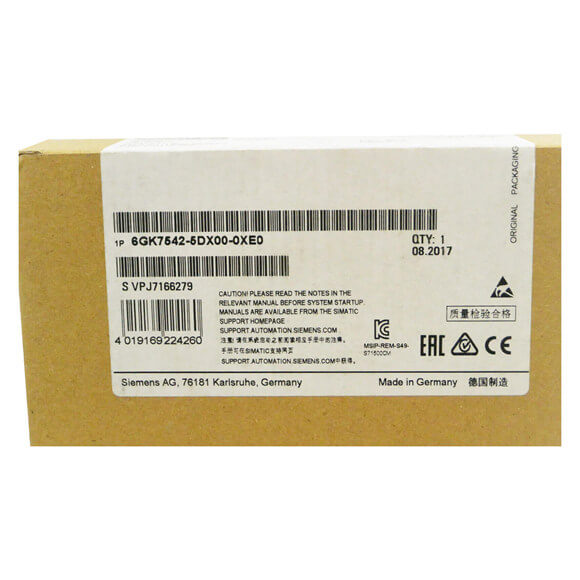

Article number | 6GK7542-5DX00-0XE0 |

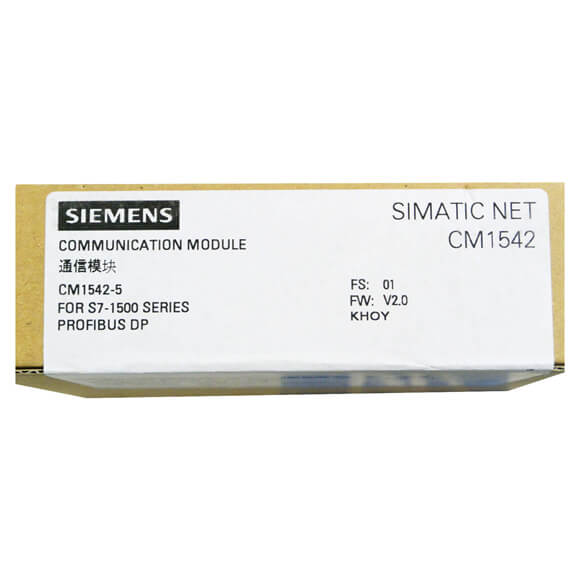

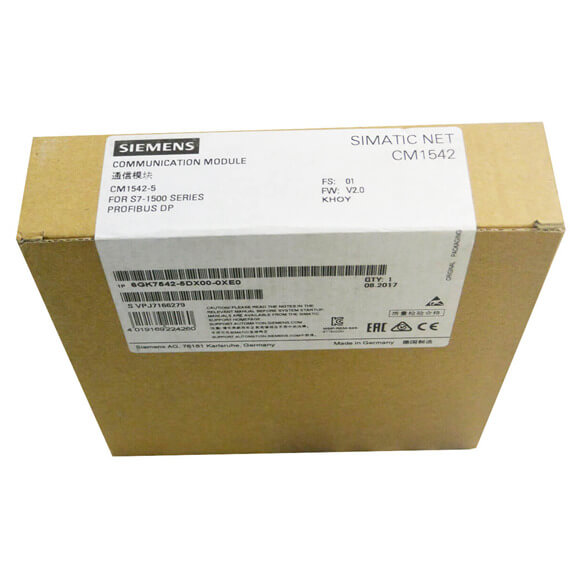

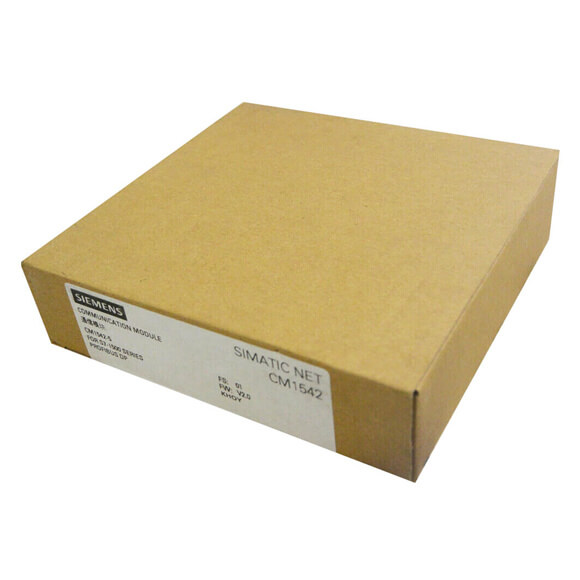

Product type designation | CM 1542-5 |
Transfer rate |
|
Transfer rate |
|
● at the 1st interface acc. to PROFIBUS | 9.6 kbit/s … 12 Mbit/s |
Interfaces |
|
Number of interfaces acc. to Industrial Ethernet | 0 |
Number of electrical connections |
|
● at the 1st interface acc. to PROFIBUS | 1 |
Type of electrical connection |
|
● at the 1st interface acc. to PROFIBUS | 9-pin Sub-D socket (RS485) |
Supply voltage, current consumption, power loss |
|
Type of voltage of the supply voltage | DC |
Supply voltage 1 from backplane bus | 15 V |
Relative symmetrical tolerance at DC |
|
● at 15 V | 3 % |
Consumed current |
|
● from backplane bus at DC at 15 V typical | 0.2 A |
Power loss [W] | 3 W |
Ambient conditions |
|
Ambient temperature |
|
● for vertical installation during operation | 0 … 40 °C |
● for horizontally arranged busbars during operation | 0 … 60 °C |
● during storage | -40 … +70 °C |
● during transport | -40 … +70 °C |
Relative humidity |
|
● at 25 °C without condensation during operation maximum | 95 % |
Protection class IP | IP20 |
Design, dimensions and weights |
|
Module format | Compact module S7-1500 single width |
Width | 35 mm |
Height | 142 mm |
Depth | 129 mm |
Net weight | 0.4 kg |
Mounting type |
|
● S7-1500 rail mounting | Yes |
Product features, product functions, product components general |
|
Number of units |
|
● per CPU maximum | 8 |
● Note | depending on CPU type |
Performance data open communication |
|
Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum | 30 |
Amount of data |
|
● as user data per connection for open communication by means of SEND/RECEIVE blocks maximum | 240 byte |
Performance data PROFIBUS DP |
|
Service as DP master |
|
● DPV1 | Yes |
Number of DP slaves |
|
● on DP master usable | 125 |
Amount of data |
|
● of the address area of the inputs as DP master total | 8 192 byte |
● of the address area of the outputs as DP master total | 8 192 byte |
● of the address area of the inputs per DP slave | 244 byte |
● of the address area of the outputs per DP slave | 244 byte |
Service as DP slave |
|
● DPV0 | Yes |
● DPV1 | Yes |
Amount of data |
|
● of the address area of the inputs as DP slave total | 240 byte |
● of the address area of the outputs as DP slave total | 240 byte |
Performance data S7 communication |
|
Number of possible connections for S7 communication |
|
● maximum | 48; depending on the system upper limit |
Performance data multi-protocol mode |
|
Number of active connections with multi-protocol mode | 48 |
Performance data telecontrol |
|
Protocol is supported |
|
● TCP/IP | No |
Product functions management, configuration, engineering |
|
Configuration software |
|
● required | STEP 7 Professional V12 (TIA Portal) or higher |
Identification & maintenance function |
|
● I&M0 – device-specific information | Yes |
● I&M1 – higher-level designation/location designation | Yes |
Product functions Diagnostics |
|
Product function Web-based diagnostics | Yes; via S7-1500 CPU |
Product functions time |
|
Product function pass on time synchronization | Yes |
