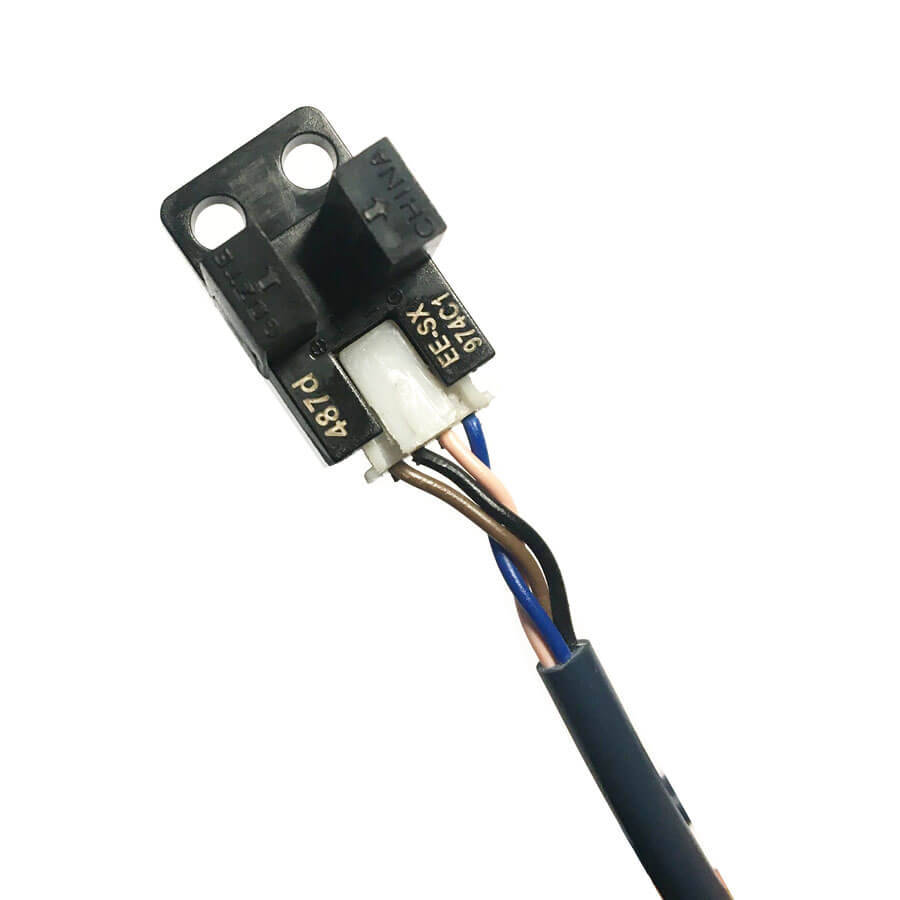

Omron Photomicro sensors EE-SX975-C1 EE-SX976-C1 EE-SX977-C1 EE-SX970P-C1

Series#: Omron Photomicro sensors

Omron Photomicro sensors EE-SX975-C1 EE-SX976-C1 EE-SX977-C1 EE-SX970P-C1
Built-in connector enables downsizing and easier connection. Protective circuit for safe operation.
A built-in connector minimizes the shape and dimensional requirements.
Two outputs: light-ON anddark-ON.
Complete lineup including seven different shapes.
Safer operation with built-in power supply reversepolarity protection.
output overcurrent protection with a thermal shutdown circuit (patent pending). *1
The indicator can be seen from many directions toenable installation in more
Connector with lock that mates with commercially available connectors. *2

Availability:



Inquire

Product Description

Series#: Omron Photomicro sensors

Omron Photomicro sensors EE-SX975-C1 EE-SX976-C1 EE-SX977-C1 EE-SX970P-C1

Download a Munual

Type	Standard	L-shaped	T-shaped, slot center 7 mm	Close-mount- ing	T-shaped, slot center 10 mm	F-shaped	R-shaped
NPN	EE-SX970-C1	EE-SX971-C1	EE-SX972-C1	EE-SX974-C1	EE-SX975-C1	EE-SX976-C1	EE-SX977-C1
PNP	EE-SX970P-C1	EE-SX971P-C1	EE-SX972P-C1	EE-SX974P-C1	EE-SX975P-C1	EE-SX976P-C1	EE-SX977P-C1
Sensing distance	5 mm (slot width)
Sensing object	Opaque: 2 ´ 0.8 mm min.
Differential distance	0.025 mm max.	*1
Light source (Peak wave- length)	Infrared LED with a peak wavelength of 940 nm
Indicator	Light indicator (orange LED)
Supply voltage	5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption	21 mA max.
Control output	Load power supply voltage: 5 to 24 VDC, Load current: 50 mA max., Off-state current : 0.5mA max, 50 mA load current with a residual voltage of 1.0 V max., 5 mA load current with a residual voltage of 0.4 V max.
Protection circuit	Power supply reverse polarity protection; output reverse polarity protection; overcurrent protection (only OUT2 on models with NPN output)
Response frequency	1 kHz min. (3 kHz average) *2
Ambient illumination	1,000 lx max. with fluorescent light on the surface of the receiver
Ambient temperature range	Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation)
Ambient humidity range	Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation)
Vibration resistance (De- struction)	10 to 2,000 Hz 0.75-mm single amplitude (15-min periods, 10 cycles) each in X, Y, and Z directions
Shock resistance (De- struction)	Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP50
Connecting method	Connector
Weight (Packed state)	Approx. 3 g
Case/Cover	Polybutylene terephthalate (PBT)
Emitter/receiver	Polycarbonate (PC)
