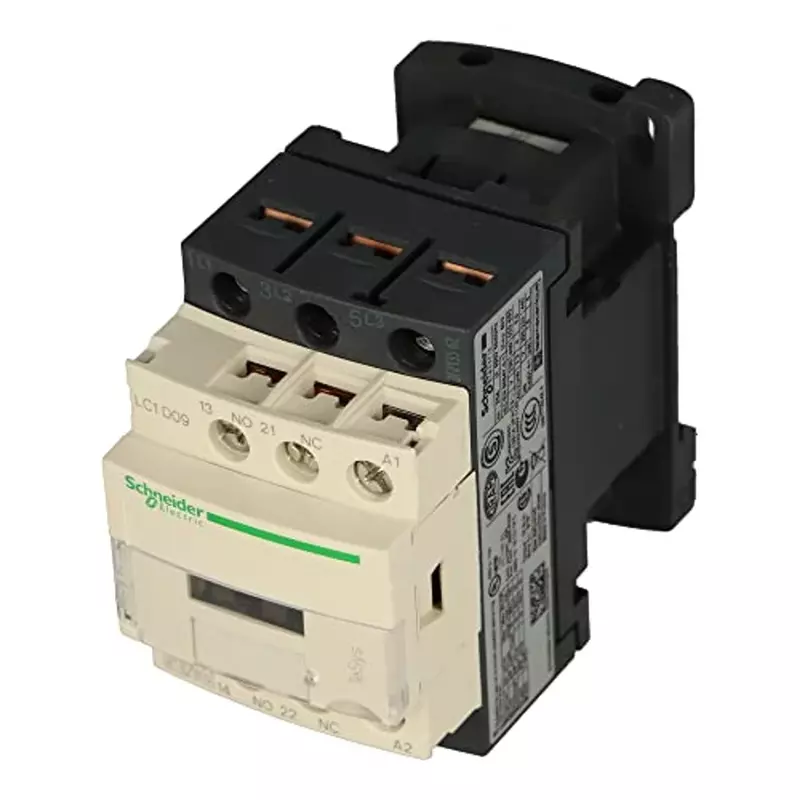

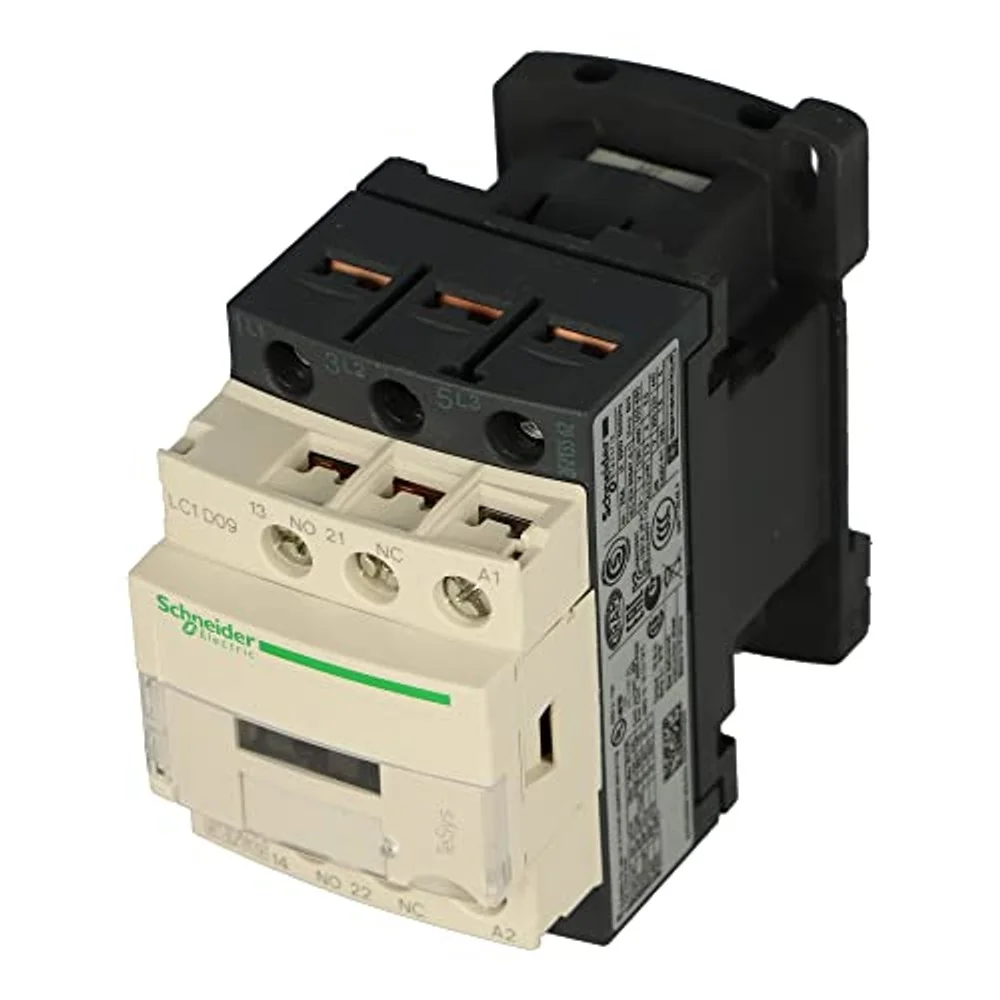

Schneider Electric LC1D09MD TeSys D 3-Pole Contactor, 9A AC-3, 24V DC Coil

Series#: Contactor -> Schneider -> TeSys D
- Schneider Electric LC1D09MD TeSys D 3-Pole Contactor, 9A AC-3, 24V DC Coil
- We have large inventory for Schneider TeSys D contactors and motor control accessories.
- 100% Original and new, In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
LC1D09MD
Brand:
Schneider Electric

Product Description

The LC1D09MD is the 24V DC coil version of the TeSys D 9A contactor. Identical to the LC1D09M7 in main contact specifications but with a DC-operated coil suitable for PLC output direct drive without interposing relays. Ideal for automation panels with 24V DC control circuits.

**Q: Why choose a DC coil over AC coil?**
A: DC coils can be driven directly from PLC transistor outputs, eliminating interposing relays. They also have lower holding current and no AC hum.

Technical Specifications

Schneider Electric LC1D09MD
Contactor -> Schneider -> TeSys D \| Schneider Electric LC1D09MD TeSys D 3-Pole Contactor, 9A AC-3, 24V DC Coil
Feature	Specification
Feature	Specification
Rated Operational Current (AC-3)	9 A
Rated Power (400V)	4 kW
Number of Poles	3 NO
Coil Voltage	24V DC
Built-in Auxiliary Contacts	1 NO + 1 NC
Mounting	DIN rail / panel
Width	45 mm
Standards	IEC 60947-4-1
AC-1 Rating (resistive)	25 A at <=440V AC
AC-3 Rating (motor)	9 A at <=440V AC
Motor Power AC-3 400V	4 kW
Rated Insulation Voltage (Ui)	690 V (IEC)
Rated Impulse Voltage (Uimp)	6 kV
Thermal Current (Ith)	25 A at <=60 C
Mechanical Durability	15 million cycles
Electrical Durability AC-3	2 million cycles
Max Operating Rate	3600 cycles/h
Short-Time Withstand Current	210 A for 1s
Associated Fuse Rating	20 A gG (Type 2)
Dimensions (HxWxD)	77 x 45 x 86 mm
Weight	~0.32-0.35 kg
Standards	IEC 60947-4-1, UL 508, CSA
