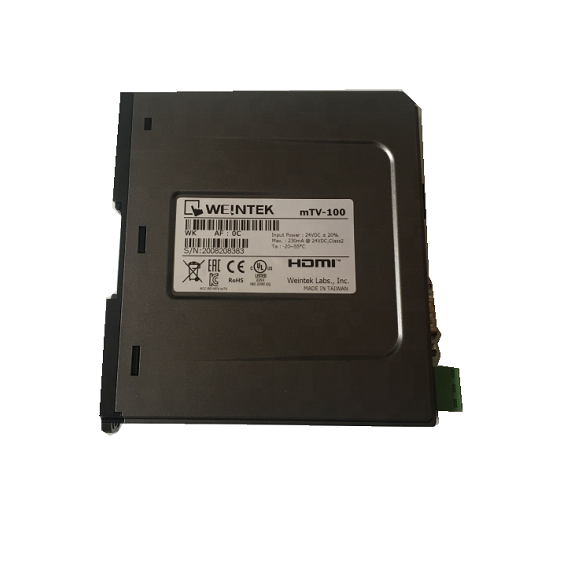

Weintek Machine TV Interface mTV-100

Series#: Weintek HMI

HD 720p High Resolution HDMI^TMOutput,Weintek Machine TV Interface
We can Supply Weintek HMI touch screen all series ,such as Weinteck HMI CMT Series ,Weinteck HMI eMT Series,Weinteck HMI iE Series ,Weinteck HMI iER Series ,Weinteck HMI iP Series,Weinteck HMI mTV Series and Weinteck HMI XE Series .
100% Original and new,In stock by Weintek Labs Inc.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Availability:



Inquire

Product Description

Series#: Weintek HMI

HD 720p High Resolution HDMI^TMOutput,Weintek Machine TV Interface
We can Supply Weintek HMI touch screen all series ,such as Weinteck HMI CMT Series ,Weinteck HMI eMT Series,Weinteck HMI iE Series ,Weinteck HMI iER Series ,Weinteck HMI iP Series,Weinteck HMI mTV Series and Weinteck HMI XE Series .

Download a Munual

model	Machine TV Interface mTV-100
RAM/Flash	256 MB
Processor	32-bit RISC Cortex-A8 600MHz
SD Card Slot	SD/SDHC
USB Host	USB 2.0 x 1
USB Client	N/A
Ethernet	10/100/1000 Base-T x 1
COM Port	COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-485 2W
RS-485 Dual Isolation	N/A
CAN Bus	N/A
HDMI Output	Resolution 1280 x 720
Audio Output	HDMI Audio Output
Video Input	N/A
RTC	Built-in
Input Power	24±20%VDC
Power Isolation	Built In
Power Consumption	230mA@24VDC
Voltage Resistance	500VAC (1 min.)
Isolation Resistance	Exceed 50MW at 500VDC
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating	Yes
Enclosure	Plastic
Dimensions WxHxD	27 x 130 x 115 mm
Weight	Approx. 0.18 kg
Mount	35mm DIN rail mounting
Protection Structure	IP20
Storage Temperature	-20° ~ 70°C (-4° ~ 158°F)
Operating Temperature	-20° ~ 55°C (-4° ~ 131°F)
Relative Humidity	10% ~ 90% (non-condensing)
CE	CE marked；
UL	cULus Listed
Software	EasyBuilder Pro V3.00.02 or later versions

Relevant documents

mTV_100_Datasheet_ENG.pdf
