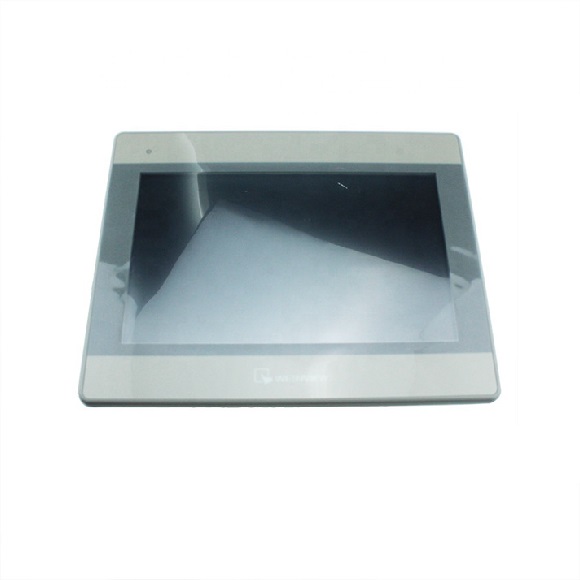

| Display | 10.1” TFT |
| Resolution | 800 x 480 |
| Brightness (cd/m2) | 300 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Life Time | >30,000 hrs. |
| Colors | 262K |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Flash | 128 MB |
| RAM | 128 MB |
| Processor | 32 bits RISC Cortex-A8 600MHz |
| SD Card Slot | N/A |
| USB Host | USB 2.0 x 1 |
| USB Client | N/A |
| Ethernet | 10/100 Base-T x 1 |
| COM Port | COM1: RS-232/RS-485 2W/4W, COM3: RS-485 2W |
| RS-485 Dual Isolation | Yes |
| CAN Bus | N/A |
| HDMI | N/A |
| Audio Output | N/A |
| Video Input | N/A |
| RTC | Built-in |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Power Consumption | maximum 600mA@24VDC, Class2 |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MW at 500VDC |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions WxHxD | 271 x 213 x 40 mm |
| Panel Cutout | 260 x 202 mm |
| Weight | Approx. 1.3 kg |
| Mount | Panel mount |
| Protection Structure | UL Type 4X (indoor use only) / NEMA4 / IP65 Compliant
Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| CE | CE marked |
| UL | cULus Listed |
| Software | EasyBuilder Pro V5.00.01 or later versions |
