| Model |

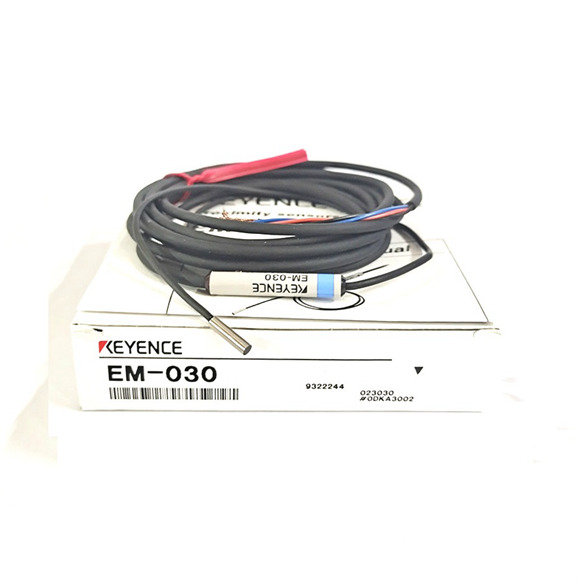

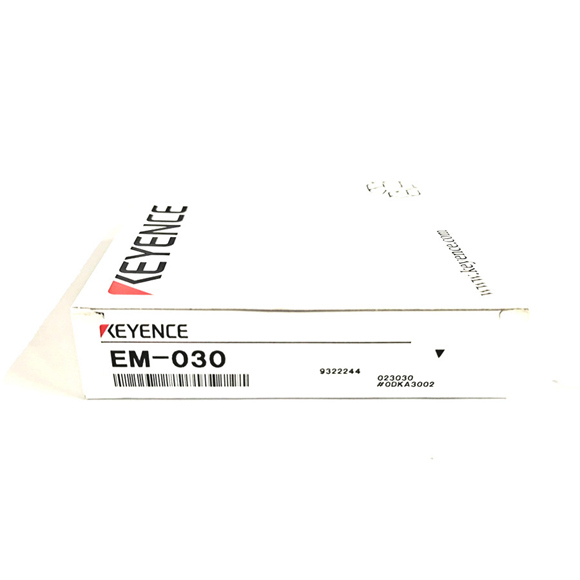

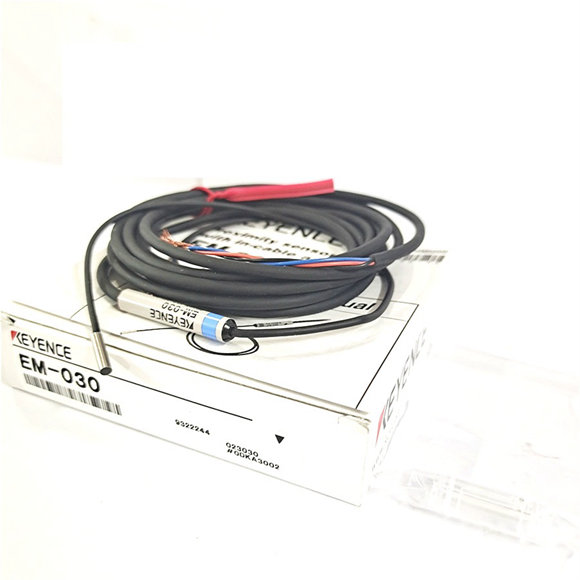

EM-030 |
EM-038 |
EM-005 |
EM-054 |
EM-080 |
EM-010 |
EM-014 |
| Type |
Shielded |
|
|
|
|
|
|
| Shape |
3 mm 0.12″ dia Cylindrical. |
3.8 mm 0.15″ dia Cylindrical. |
M5 Threaded |
5.4 mm 0.21″ dia Cylindrical. |
8 mm 0.31″ dia Cylindrical. |
M10 Threaded |
M14 Threaded |
| Detecting distance |
0.6 mm 0.02″ ±15% |
0.8 mm 0.031″ ±15% |
1.0 mm 0.04″ ±15% |
1.2 mm 0.05″ ±10% |
2.0 mm 0.08″ ±10% |
4.0 mm 0.16″ ±10% |
|
| Detectable object |
Ferrous metals (see Characteristics for non-ferrous metals) |
|
|
|
|
|
|
Standard target
(iron, t=1 mm <font color=”#0099ff”>0.04″</font>) |
5 x 5 mm 0.20″ |
6 x 6 mm 0.24″ |
10 x 10 mm 0.39″ x 0.39″ |
15 x 15 mm 0.59″ x 0.59″ |
|
|
|
| Hysteresis |
10% max. of detecting distance |
|
|
|
|
|
|
| Response frequency |
1.2 kHz |
|
|
|
|
|
|
| Operation mode |
N.O. |
|
|
|
|
|
|
| Temperature characteristics |
±10% max. of detecting distance at +23°C 73.4°F, within -10 to +70°C 14 to 158°F |
|
|
|
|
|
|
| Display indicator |
Red LED |
|
|
|
|
|
|
| Output |
NPN |
|
|
|
|
|
|
| Control output |
NPN: 200 mA (40 V) max., Residual voltage: 1 V max. |
|
|
|
|
|
|
| Housing |
Stainless steel |
Cr-plated brass |
|
|
|
|
|
|
Power voltage |
10.8 to 30 VDC, Ripple (P-P) 10 % or less*1 |
|
|
|
|
|
|
| Current consumption |
12 mA or less |
|
|
|
|
|
|
| Enclosure rating |
IP67 |
|
|
|
|
|
|
| Ambient temperature |
-25 to +80 °C -13 to 176 °F (No freezing) |
|
|
|
|
|
|
| Relative humidity |
35 to 95 % RH (No condensation) |
|
|
|
|
|
|
| Weight |
Approx. 36 g (including nuts and 2-m 6.6′ cable) |
Approx. 38 g (including nuts and 2-m 6.6′ cable) |
Approx. 40 g (including nuts and 2-m 6.6′ cable) |
Approx. 42 g (including nuts and 2-m 6.6′ cable) |
Approx. 50 g (including nuts and 2-m 6.6′ cable) |
Approx. 60 g (including nuts and 2-m 6.6′ cable) |
|
