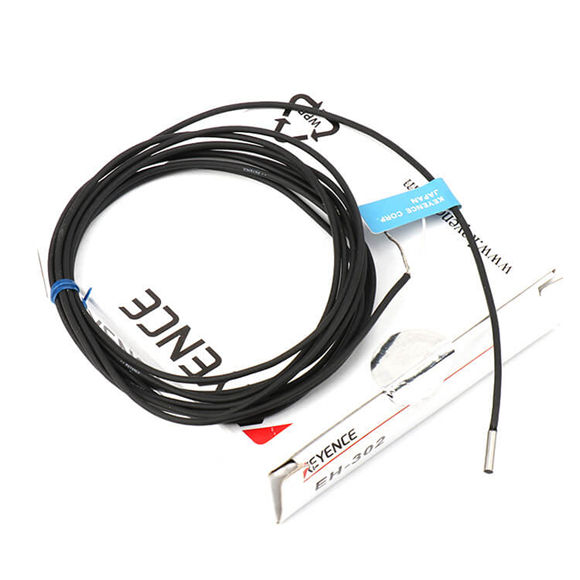

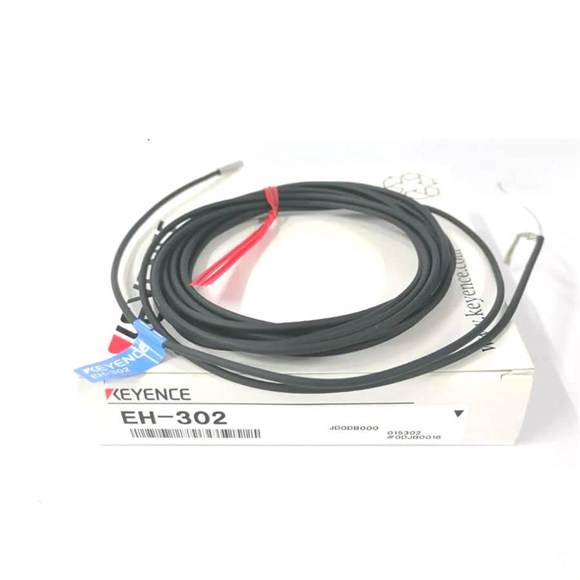

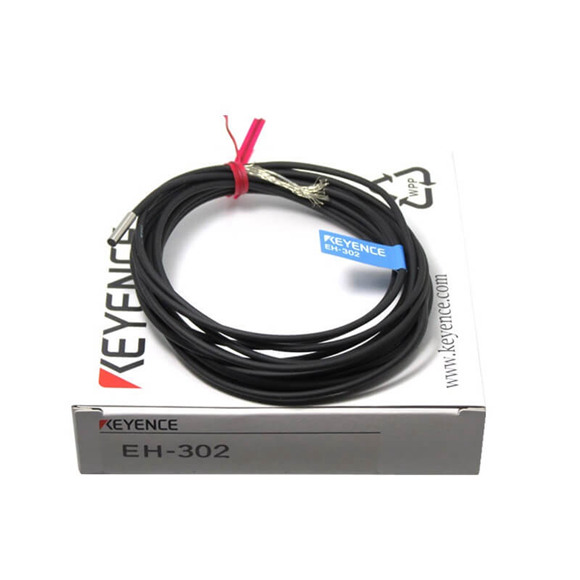

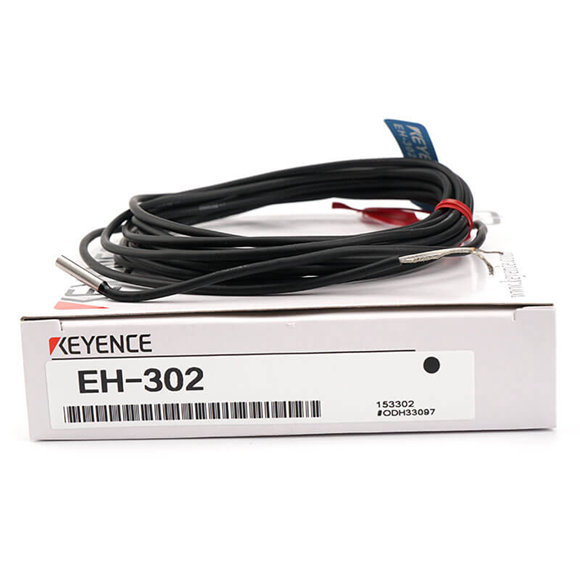

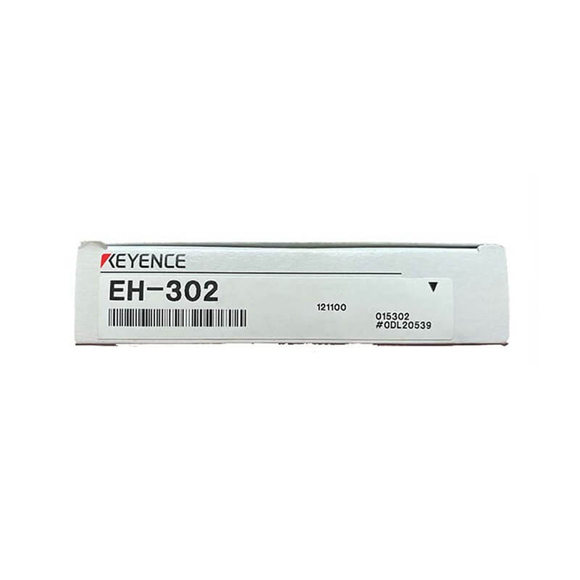

Keyence Proximity Sensor EH-302 EH-303A EH-305 EH-308 EH-110 EH-114

Keyence Proximity Sensor EH-302 EH-303A EH-305 EH-308 EH-110 EH-114
We can Supply all kinds of Keyence sensor parts,such as Keyence Digital Laser Sensors,Keyence Vision Sensors,Keyence Fiber Optic Sensors,Keyence Inductive Proximity Sensors,Keyence Photoelectric Sensors,Keyence Positioning Sensors and So on.
All parts are 100% Original and new in stock by Keyence and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Product Description

Model	EH-302	EH-303A	EH-305	EH-308	EH-110	EH-114
Type	Standard , Shielded , Cylindrical	Standard , Shielded , Threaded
Detectable object	Ferrous metals (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm <font color=”#0099ff”>0.04″</font>)	5 x 5 mm0.02″	10 x 10 mm 0.39″ x 0.39″	15 x 15 mm 0.59″ x 0.59″
Stable detecting range	0 to 0.6 mm0.02″	0 to 0.8 mm0.03″	0 to 1 mm0.04″	0 to 2 mm0.08″	0 to 5 mm0.20″
Maximum detecting distance	1.2 mm0.05″	2 mm0.08″	3 mm0.12″	5 mm0.20″	8 mm0.31″
Hysteresis	0.04 mm0.002″	0.05 mm0.002″	0.04 mm0.002″	0.05 mm0.002″
Repeatability	0.002 mm0.00008″	0.005 mm 0.0002″
Temperature characteristics	-10 to +20% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F	±10% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F
Enclosure rating	IP67
Ambient temperature	-10 to +60 °C 14 to 140 °F (No freezing)
Relative humidity	35 to 85 % RH (No condensation)
Weight	Approx. 29 g (including nuts and 3-m 9.8′ cable)	Approx. 38 g (including nuts and 3-m 9.8′ cable)	Approx. 45 g (including nuts and 3-m 9.8′ cable)	Approx. 47 g (including nuts and 3-m 9.8′ cable)	Approx. 55 g (including nuts and 3-m 9.8′ cable)	Approx. 62 g (including nuts and 3-m 9.8′ cable)
