| Model |

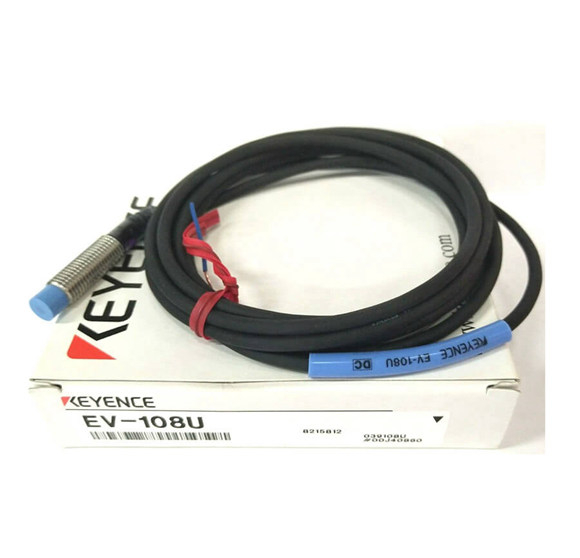

EV-108U*1 |
EV-112U |

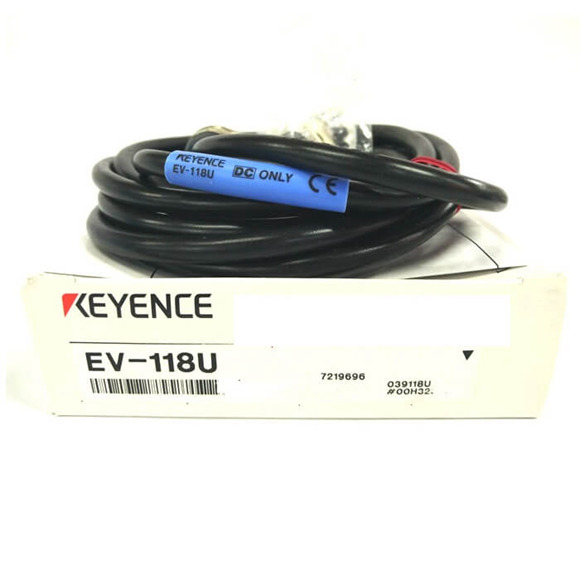

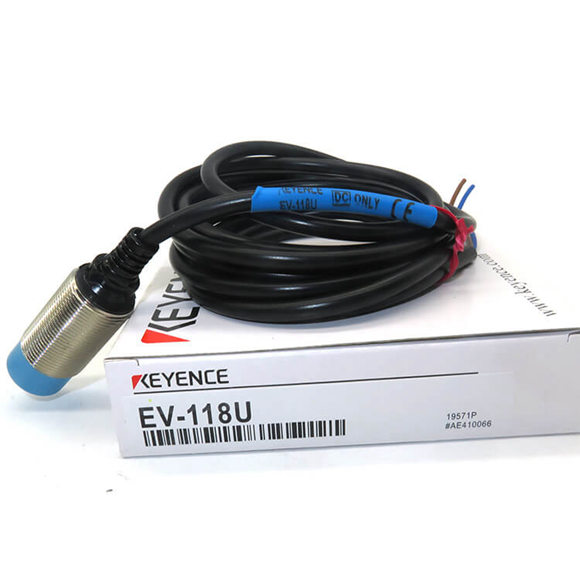

EV-118U |
EV-130U |
| Type |
Non-shielded |
DC , Non-shielded |
|
|
| Shape |
M8 |
M12 |
M18 |
M30 |
| Detecting distance |
4 mm 0.16″ ±10% |
8 mm 0.31″ ±10% |
15 mm 0.59″ ±10% |
27 mm 1.06″ ±10% |
| Detectable object |
Ferrous metals (see Characteristics for nonferrous metals) |
|
|
|
Standard target
(iron, t=1 mm <font color=”#0099ff”>0.04″</font>) |
20 x 20 mm 0.79″ x 0.79″ |
30 x 30 mm 1.18″ x 1.18″ |
50 x 50 mm 1.97″ |
70 x 70 mm 2.76″ |
| Hysteresis |
20% max. of detecting distance, within -10 to +70°C 14 to 158°F |
|
|
|
| Response frequency |
800 Hz |
600 Hz |
350 Hz |
250 Hz |
| Operation mode |
N.O. |
|
|
|
| Temperature characteristics |
±10% max. of detecting distance,
within -10 to +70°C 14 to 158°F |
-5 to +20%,
within -10 to +70°C 14 to 158°F |
|
|
Control output
(switching capacity) |
5 to 80 mA |
5 to 200 mA |
|
|
| Protection circuit |
Reversed polarity,surge voltage |
Reversed polarity, short-circuit, surge voltage |
|
|
| Cable length |
2 m 6.6′ |
|
|
|
| Power voltage |
12 to 24 VDC, Ripple (P-P) 20 % or less |
|
|
|
Current consumption (leakage
current) |
Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6′ cable) |
|
|
|
| Residual voltage |
Residual voltage: 3.6 V max. (with 2-m 6.6′ cable) |
|
|
|
| Enclosure rating |
IP67 |
|
|
|
| Ambient temperature |
-25 to +80 °C -13 to 176 °F (No freezing) |
|
|
|
| Relative humidity |
35 to 95 % RH (No condensation) |
|
|
|
| Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
|
|
|
| Shock resistance |
500 m/s2, 3 times in each of the X, Y, and Z directions |
1,000 m/s2, 3 times in each of the X, Y, and Z directions |
|
|
| Case material |
Stainless steel (SUS304) |
Nickel-plated brass |
|
|
| Accessories |
Nut × 2, toothed washer × 1, instruction manual |
|
|
|
| Weight |
Approx. 42 g |
