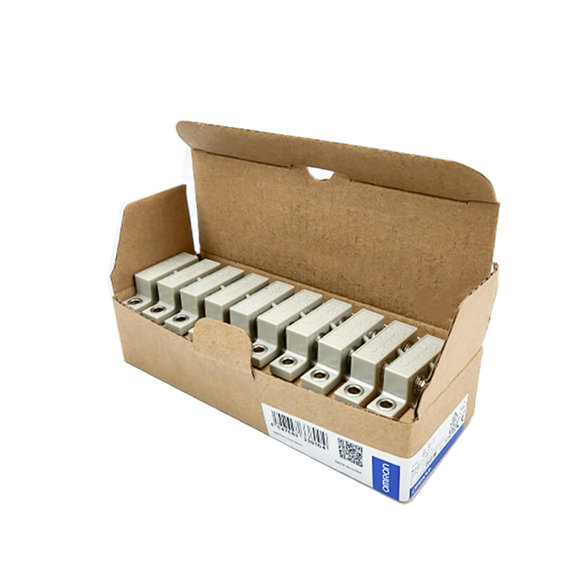

| Model | GLS-1 | GLS-1L |
| Sensing distance | 15 mm *1 |
|
| Contact circuit | SPST-NO |
|
| Switching capacity *2 | Maximum operating voltage: 100 VDC
Maximum operating current: 0.1 A DC
Maximum switching capacity: 10 W (for both open and closed contacts) |
|
| Contact dielectric strength | 250 VDC for 1 min with a leakage current of 1 mA max. |
|
| Response frequency | 20 Hz max. |
|
| Ambient temperature range | Operating/Storage: -20 to 60°C (with no icing or condensation) |
|
| Ambient humidity range | Operating/storage: 35% to 85% (with no condensation) |
|
| Contact resistance | 150 mΩ max. | 250 mW max. (including conductor resistance of lead wire) |
| Dielectric strength | 1,000 VAC for 1 min between terminals and case |
|
| Life expectancy | 50,000,000 times min. with 0.1-A resistive load at 24 VDC |
|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
|
| Shock resistance | Destruction: 300 m/s2 3 times each in X, Y, and Z directions |
|
| Degree of protection | IP40 (IEC) |
|
| Connection method | Terminal block | Pre-wired (standard cable length: 1 m) |
| Materials | Sensor | ABS |
| Magnet |
|
|
