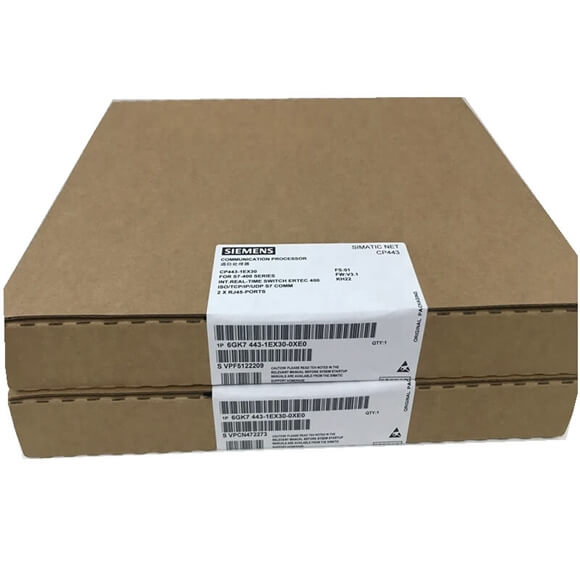

Article number | 6GK7443-1EX30-0XE0 |
Product type designation | CP 443-1 |
Transfer rate |
|
Transfer rate |
|
● at the 1st interface
| 10 … 100 Mbit/s |
Interfaces |
|
Number of interfaces acc. to Industrial Ethernet | 2 |
Number of electrical connections |
|
● at the 1st interface acc. to Industrial Ethernet
| 2 |
Type of electrical connection |
|
● at the 1st interface acc. to Industrial Ethernet
| RJ45 port |
design of the removable storage C-PLUG | No |
Supply voltage, current consumption, power loss |
|
Type of voltage of the supply voltage | DC |
Supply voltage 1 from backplane bus | 5 V |
Relative symmetrical tolerance at DC |
|
● at 5 V
| 5 % |
Consumed current |
|
● from backplane bus at DC at 5 V typical
| 1.4 A |
Power loss [W] | 7.25 W |
Ambient conditions |
|
Ambient temperature |
|
● during operation
| 0 … 60 °C |
● during storage
| -40 … +70 °C |
● during transport
| -40 … +70 °C |
Relative humidity |
|
● at 25 °C without condensation during operation maximum
| 95 % |
Protection class IP | IP20 |
Design, dimensions and weights |
|
Module format | Compact module S7-400 single width |
Width | 25 mm |
Height | 290 mm |
Depth | 210 mm |
Net weight | 0.7 kg |
Product features, product functions, product components general |
|
Number of units |
|
● per CPU maximum
| 14 |
● Note
| max. 4 as PN IO ctrl. |
Performance data open communication |
|
Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum | 64 |
Amount of data |
|
● as user data per ISO connection for open communication by means of SEND/RECEIVE blocks maximum
| 8 Kibyte |
● as user data per ISO on TCP connection for open communication by means of SEND/RECEIVE blocks maximum
| 8 Kibyte |
● as user data per TCP connection for open communication by means of SEND/RECEIVE blocks maximum
| 8 Kibyte |
● as user data per UDP connection for open IE communication by means of SEND/RECEIVE blocks maximum
| 2 Kibyte |
Number of possible connections for open communication |
|
● by means of T blocks maximum
| 64 |
Amount of data |
|
● as user data per ISO on TCP connection for open communication by means of T blocks maximum
| 1 452 byte |
Performance data S7 communication |
|
Number of possible connections for S7 communication |
|
● maximum
| 128; when using several CPUs |
● with PG connections maximum
| 2 |
