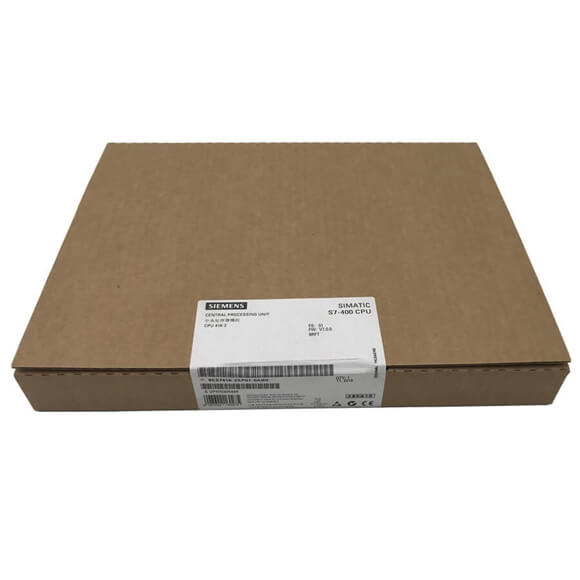

Article number | 6ES7416-2XP07-0AB0 | 6ES7416-3XS07-0AB0 | 6ES7416-3ES07-0AB0 |
Article number | CPU 416-2, MPI, PROFIBUS, 8 MB | CPU 416-3, 16 MB, 3 INTERFACES | CPU416-3 PN/DP, 16 MB, 3 INTERFACES |
General information |
|
|
|
Product type designation | CPU 416-2 | CPU 416-3 | CPU 416-3 PN/DP |
HW functional status | 01 | 01 | 01 |
Firmware version | V7.0 | V7.0 | V7.0 |
Product function |
|
|
|
● Isochronous mode | Yes; For PROFIBUS only | Yes; For PROFIBUS only | Yes; Via PROFIBUS DP or PROFINET interface |
Engineering with |
|
|
|
● Programming package | STEP 7 V5.4 or higher with HSP 261 | STEP 7 V5.4 or higher with HSP 261 | STEP 7 V5.5 or higher with HSP 262 |
CiR – Configuration in RUN |
|
|
|
CiR synchronization time, basic load | 100 ms | 100 ms | 100 ms |
CiR synchronization time, time per I/O byte | 10 µs | 10 µs | 10 µs |
Supply voltage |
|
|
|
Rated value (DC) |
|
|
|
● 24 V DC | No; Power supply via system power supply | No; Power supply via system power supply | No; Power supply via system power supply |
Input current |
|
|
|
from backplane bus 5 V DC, typ. | 0.9 A | 1.1 A | 1.3 A |
from backplane bus 5 V DC, max. | 1.1 A | 1.3 A | 1.6 A |
from backplane bus 24 V DC, max. | 300 mA; 150 mA per DP interface | 450 mA; 150 mA per DP interface | 300 mA; 150 mA per DP interface |
from interface 5 V DC, max. | 90 mA; At each DP interface | 90 mA; At each DP interface | 90 mA; At each DP interface |
Power loss |
|
|
|
Power loss, typ. | 4.5 W | 5.5 W | 6.5 W |
Power loss, max. | 5.5 W | 6.5 W | 8 W |
Memory |
|
|
|
Type of memory | RAM | RAM | RAM |
Work memory |
|
|
|
● integrated | 8 Mbyte | 16 Mbyte | 16 Mbyte |
● integrated (for program) | 4 Mbyte | 8 Mbyte | 8 Mbyte |
● integrated (for data) | 4 Mbyte | 8 Mbyte | 8 Mbyte |
● expandable | No | No | No |
Load memory |
|
|
|
● expandable FEPROM | Yes; with Memory Card (FLASH) | Yes; with Memory Card (FLASH) | Yes; with Memory Card (FLASH) |
● expandable FEPROM, max. | 64 Mbyte | 64 Mbyte | 64 Mbyte |
● integrated RAM, max. | 1 Mbyte | 1 Mbyte | 1 Mbyte |
● expandable RAM | Yes; with Memory Card (RAM) | Yes; with Memory Card (RAM) | Yes; with Memory Card (RAM) |
● expandable RAM, max. | 64 Mbyte | 64 Mbyte | 64 Mbyte |
Backup |
|
|
|
● present | Yes | Yes | Yes |
● with battery | Yes; all data | Yes; all data | Yes; all data |
● without battery | No | No | No |
Battery |
|
|
|
Backup battery |
|
|
|
● Backup current, typ. | 180 µA; up to 40 °C | 180 µA; up to 40 °C | 180 µA; up to 40 °C |
● Backup current, max. | 850 µA | 850 µA | 850 µA |
● Backup time, max. | Dealt with in the module data manual with the secondary conditions and the factors of influence | Dealt with in the module data manual with the secondary conditions and the factors of influence | Dealt with in the module data manual with the secondary conditions and the factors of influence |
● Feeding of external backup voltage to CPU | 5 V DC to 15 V DC | 5 V DC to 15 V DC | 5 V DC to 15 V DC |
CPU processing times |
|
|
|
for bit operations, typ. | 12.5 ns | 12.5 ns | 12.5 ns |
for word operations, typ. | 12.5 ns | 12.5 ns | 12.5 ns |
for fixed point arithmetic, typ. | 12.5 ns | 12.5 ns | 12.5 ns |
for floating point arithmetic, typ. | 25 ns | 25 ns | 25 ns |
CPU-blocks |
|
|
|
DB |
|
|
|
● Number, max. | 10 000; Number range: 1 to 16000 | 10 000; Number range: 1 to 16000 | 10 000; Number range: 1 to 16000 |
● Size, max. | 64 kbyte | 64 kbyte | 64 kbyte |
FB |
|
|
|
● Number, max. | 5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 |
● Size, max. | 64 kbyte | 64 kbyte | 64 kbyte |
FC |
|
|
|
● Number, max. | 5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 |
● Size, max. | 64 kbyte | 64 kbyte | 64 kbyte |
