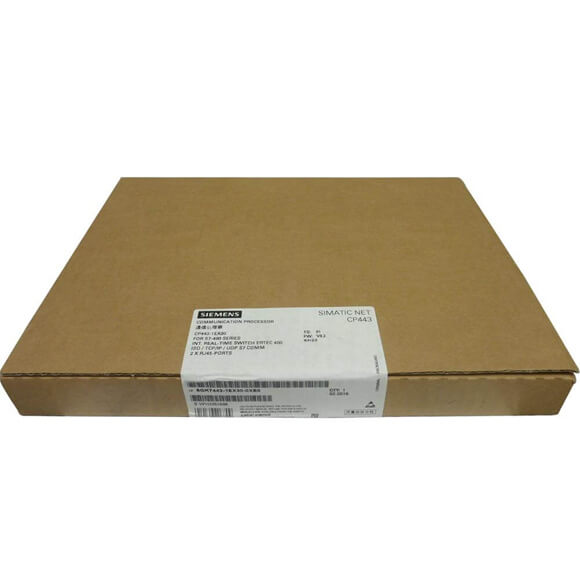

Siemens PLCs Communications processor CP443-1 6GK7443-5DX05-0XE0

Product type designation

CP 443-1

Transfer rate

Transfer rate

● at the 1st interface

10 … 100 Mbit/s

Interfaces

Number of interfaces acc. To

Industrial Ethernet

2

Number of electrical connections

● at the 1st interface acc. to

Industrial Ethernet

2

Type of electrical connection

● at the 1st interface acc. to Industrial Ethernet

RJ45 port

design of the removable storage C-PLUG

No

Supply voltage, current

consumption, power loss

Type of voltage of the supply voltage

DC

Supply voltage 1 from backplane bus

5 V

Relative symmetrical tolerance at DC

● at 5 V

5 %

Consumed current

● from backplane bus at DC

at 5 V typical

1.4 A

Power loss [W]

7.25 W

Ambient conditions

Ambient temperature

● during operation

0 … 60 °C

● during storage

-40 … +70 °C

● during transport

-40 … +70 °C

Relative humidity

● at 25 °C without condensation

during operation maximum

95 %

Protection class IP

IP20

Design, dimensions and weights

Module format

Compact module S7-400 single width

Width

25 mm

Height

290 mm

Depth

210 mm

Net weight

0.7 kg

Product features, product

functions, product components general

Number of units

● per CPU maximum

14

● Note

max. 4 as PN IO ctrl.

Performance data open communication

Number of possible

connections for open

communication by means of

SEND/RECEIVE blocks maximum

64

Amount of data

● as user data per

ISO connection for open

communication by means

of SEND/RECEIVE blocks maximum

8 Kibyte

● as user data per ISO on

TCP connection for open

communication by means

of SEND/RECEIVE blocks maximum

8 Kibyte

● as user data per

TCP connection for open

communication by means

of SEND/RECEIVE blocks maximum

8 Kibyte

● as user data per UDP

connection for open IE

communication by

means of SEND/RECEIVE

blocks maximum

2 Kibyte

Number of possible

connections for open communication

● by means of T blocks maximum

64

Amount of data

● as user data per ISO on

TCP connection for open

communication by means of

T blocks maximum

1 452 byte

Performance data S7 communication

Number of possible connections

for S7 communication

● maximum

128; when using several CPUs

● with PG connections maximum

2

Performance data

multi-protocol mode

Number of active connections

with multi-protocol mode

128

Performance data PROFINET

communication as PN IO controller

Product function PROFINET

IO controller

Yes

Number of PN IO devices on

PROFINET IO controller usable total

128

Number of PN IO IRT

devices on PROFINET IO controller usable

64

Number of external PN IO

lines with PROFINET per rack

4

Amount of data

● as user data for input

variables as PROFINET IO

controller maximum

4 Kibyte

● as user data for input

variables as PROFINET IO

controller maximum

4 Kibyte

● as user data for input

variables per PN IO device as

PROFINET IO controller maximum

1 433 byte

● as user data for output

variables per PN IO device

as PROFINET IO controller maximum

1 433 byte

● as user data for input

variables per PN IO device

for each sub-module as

PROFINET IO controller maximum

240 byte

● as user data for output

variables per PN IO device for

each sub-module as

PROFINET IO controller maximum

240 byte

Product functions management,

configuration, engineering

Product function MIB support

Yes

Protocol is supported

● SNMP v1

Yes

● DCP

Yes

● LLDP

Yes

Configuration software

● required

STEP 7 V5.5 SP3 or higher / STEP 7 Professional V12 (TIA Portal) or higher

Product functions Diagnostics

Product function Web-based diagnostics

Yes

Product functions Switch

Product feature Switch

Yes

Product function

● switch-managed

No

● with IRT PROFINET IO switch

Yes

● Configuration with STEP 7

Yes

Product functions redundancy

Product function

● Ring redundancy

Yes

● Redundancy manager

Yes

Protocol is supported Media

Redundancy Protocol (MRP)

Yes

Product functions Security

Product function

● password protection

for Web applications

No

● ACL – IP-based

Yes

● ACL – IP-based for

PLC/routing

No

● switch-off of

non-required services

Yes

● Blocking of

communication via physical

ports

Yes

● log file for unauthorized

access

No

Product functions time

Product function SICLOCK

support

Yes

Product function

pass on time synchronization

Yes

Protocol is supported

● NTP

Yes
