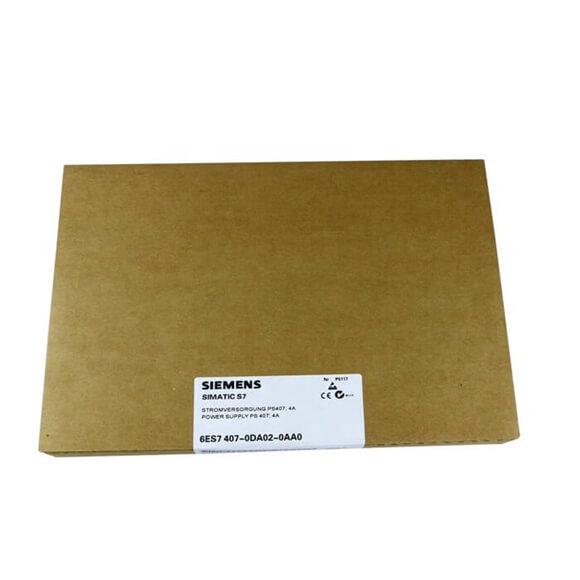

Article number | 6ES7407-0DA02-0AA0 | 6ES7407-0KA02-0AA0 | 6ES7407-0KR02-0AA0 | 6ES7407-0RA02-0AA0 |
| POWER SUPPLY PS407, 120/230V UC,5V DC/4A | PS407 POWER SUPPLY,120/230V UC,5V DC/10A | POWERSUPP.PS407,UC120/230V,DC5V/10A,RED. | PS407 POWER SUPPLY,120/230V UC,5V DC/20A |
Supply voltage |
|
|
|
|
Rated value (DC) |
|
|
|
|
● 120 V DC | Yes | Yes | Yes | Yes |
● 230 V DC | Yes | Yes | Yes | Yes |
Rated value (AC) |
|
|
|
|
● 120 V AC | Yes | Yes | Yes | Yes |
● 230 V AC | Yes | Yes | Yes | Yes |
Line frequency |
|
|
|
|
● Rated value 50 Hz | Yes | Yes | Yes | Yes |
● Rated value 60 Hz | Yes | Yes | Yes | Yes |
● permissible range, lower limit | 47 Hz | 47 Hz | 47 Hz | 47 Hz |
● permissible range, upper limit | 63 Hz | 63 Hz | 63 Hz | 63 Hz |
Mains buffering |
|
|
|
|
● Mains/voltage failure stored energy time | 20 ms | 20 ms | 20 ms | 20 ms |
● Mains buffering according to NAMUR recommendation | Yes | Yes | Yes | Yes |
Input current |
|
|
|
|
Rated value at 110 V DC | 350 mA; at 120 V DC | 1 A; at 120 V DC | 1 A; at 120 V DC | 1.4 A; at 120 V DC |
Rated value at 230 V DC | 190 mA | 0.5 A | 0.5 A | 0.7 A |
Rated value at 120 V AC | 0.42 A | 0.9 A | 0.9 A | 1.4 A |
Rated value at 230 V AC | 0.22 A | 0.5 A | 0.5 A | 0.7 A |
Inrush current, max. | 8.25 A; Full width at half maximum 5 ms | 63 A; Full width at half maximum 1 ms | 63 A; Full width at half maximum 1 ms | 88 A; Full width at half maximum 1.1 ms |
Leakage current, max. | 3.5 mA | 3.5 mA | 3.5 mA | 3.5 mA |
Output voltage |
|
|
|
|
Type of output voltage | DC | DC | DC | DC |
Rated value (DC) |
|
|
|
|
● 5 V DC | Yes | Yes | Yes | Yes |
● 24 V DC | Yes | Yes | Yes | Yes |
Output current |
|
|
|
|
for backplane bus (5 V DC), max. | 4 A; no base load required | 10 A; no base load required | 10 A; no base load required | 20 A; no base load required |
for backplane bus (24 V DC), max. | 0.5 A; idling-proof | 1 A; idling-proof | 1 A; idling-proof | 1 A; idling-proof |
Short-circuit protection | Yes | Yes | Yes | Yes |
Power |
|
|
|
|
Active power input, typ. | 52 W | 95 W | 95 W | 158 W |
Power loss |
|
|
|
|
Power loss, typ. | 20 W | 20 W | 20 W | 35 W |
Battery |
|
|
|
|
Backup battery |
|
|
|
|
● Backup battery (optional) | Yes; 1x lithium AA; 3.6 V / 2.2 Ah | Yes; 1x lithium AA; 3.6 V / 2.2 Ah | Yes; 1x lithium AA; 3.6 V / 2.2 Ah | Yes; 1x lithium AA; 3.6 V / 2.2 Ah |
Hardware configuration |
|
|
|
|
Slots |
|
|
|
|
● required slots | 1 | 2 | 2 | 2 |
Potential separation |
|
|
|
|
primary/secondary | Yes | Yes | Yes | Yes |
Isolation |
|
|
|
|
Overvoltage category | II | II | II | II |
EMC |
|
|
|
|
Compliance with line harmonic distortion limits |
|
|
|
|
● Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 | Yes | Yes | Yes | Yes |
Degree and class of protection |
|
|
|
|
Equipment protection class | I, with protective conductor | I, with protective conductor | I, with protective conductor | I, with protective conductor |
Standards, approvals, certificates |
|
|
|
|
FM approval | Yes; Ta: 0 °C to 70 °C T4 | Yes; Ta: 0 °C to 70 °C T4 | Yes; Ta: 0 °C to 70 °C T4 | Yes; Ta: 0 °C to 70 °C T4 |
Ambient conditions |
|
|
|
|
Ambient temperature during operation |
|
|
|
|
● min. | 0 °C | 0 °C | 0 °C | 0 °C |
● max. | 60 °C | 60 °C | 60 °C | 60 °C |
Connection method |
|
|
|
|
Design of electrical connection | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm |
Dimensions |
|
|
|
|
Width | 25 mm | 50 mm | 50 mm | 50 mm |
Height | 290 mm | 290 mm | 290 mm | 290 mm |
Depth | 217 mm | 217 mm | 217 mm | 217 mm |
Weights |
|
|
|
|
Weight, approx. | 760 g | 1 200 g | 1 200 g | 1 300 g |
