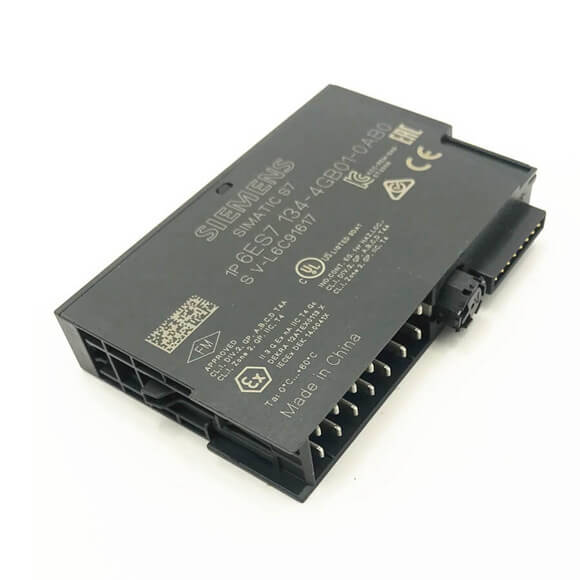

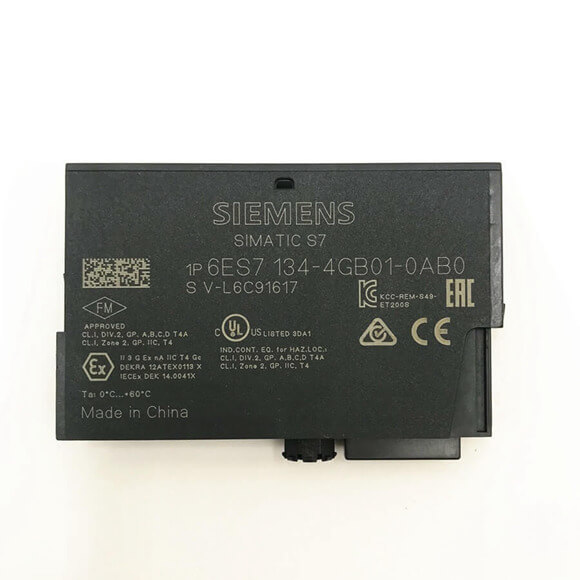

Article number | 6ES7134-4FB01-0AB0 | 6ES7134-4LB02-0AB0 | 6ES7134-4GB01-0AB0 | 6ES7134-4GB52-0AB0 |
| ET200S, El-Mod., 2AI Std U, +/-10V,1-5V | ET200S, El-Mod., 2AI U HF, +/-10V, 1..5V | ET200S, El-Mod., 2AI Std I-2DMU, 0-20mA, | ET200S, El-Mod., 2AI HS I-2DMU, 0-20mA, |
Supply voltage |
|
|
|
|
Load voltage L+ |
|
|
|
|
● Rated value (DC) | 24 V; From power module | 24 V | 24 V; From power module | 24 V |
● Short-circuit protection |
|
|
| Yes |
● Reverse polarity protection | Yes | Yes | Yes; Destruction limit 35 mA per channel | Yes |
Input current |
|
|
|
|
from load voltage L+ (without load), max. | 30 mA | 55 mA | 80 mA | 225 mA |
from backplane bus 3.3 V DC, max. | 10 mA | 10 mA | 10 mA | 10 mA |
Output voltage |
|
|
|
|
Power supply to the transmitters |
|
|
|
|
● present |
| No |
| Yes |
Power loss |
|
|
|
|
Power loss, typ. | 0.6 W | 0.85 W | 0.6 W | 2.5 W |
Address area |
|
|
|
|
Address space per module |
|
|
|
|
● Address space per module, max. | 4 byte | 4 byte | 4 byte | 4 byte |
Analog inputs |
|
|
|
|
Number of analog inputs | 2 | 2 | 2 | 2 |
permissible input voltage for voltage input (destruction limit), max. | 35 V; 35 V continuous; 75 V for max. 1 ms (mark to space ratio 1:20) | 35 V; 35 V continuous; 75 V for max. 1 ms |
|
|
permissible input current for current input (destruction limit), max. |
|
| 40 mA |
|
Cycle time (all channels) max. | Number of active channels per module x basic conversion time | 0.5 ms; 0.5 ms for 2 channels without noise suppression, 18 / 21 ms per channel with noise suppression | Number of active channels per module x basic conversion time | 0.25 ms |
Input ranges (rated values), voltages |
|
|
|
|
● 1 V to 5 V | Yes | Yes |
|
|
— Input resistance (1 V to 5 V) |
| 800 kΩ |
|
|
● -10 V to +10 V | Yes | Yes |
|
|
— Input resistance (-10 V to +10 V) |
| 800 kΩ |
|
|
● -5 V to +5 V | Yes | Yes |
|
|
— Input resistance (-5 V to +5 V) |
| 800 kΩ |
|
|
Input ranges (rated values), currents |
|
|
|
|
● 0 to 20 mA |
|
|
| Yes |
— Input resistance (0 to 20 mA) |
|
|
| 106 Ω |
● 4 mA to 20 mA |
|
| Yes; on 50 ohms | Yes |
Cable length |
|
|
|
|
● shielded, max. | 200 m | 200 m | 200 m | 200 m |
