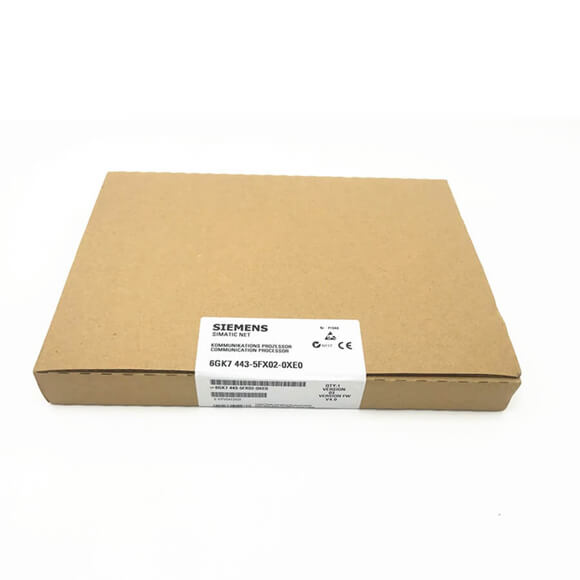

Article number | 6GK7443-5FX02-0XE0 |
Product type designation | CP 443-5 Basic |
Transfer rate |
|
Transfer rate |
|
● at the 1st interface acc. to PROFIBUS | 9.6 kbit/s … 12 Mbit/s |
Interfaces |
|
Number of interfaces acc. to Industrial Ethernet | 0 |
Number of electrical connections |
|
● at the 1st interface acc. to PROFIBUS | 1 |
Type of electrical connection |
|
● at the 1st interface acc. to PROFIBUS | 9-pin Sub-D socket (RS485) |
Supply voltage, current consumption, power loss |
|
Type of voltage of the supply voltage | DC |
Supply voltage 1 from backplane bus | 5 V |
Supply voltage | 5 V |
Relative symmetrical tolerance at DC |
|
● at 5 V | 5 % |
Consumed current |
|
● from backplane bus at DC at 5 V typical | 1 A |
● from external supply voltage at DC at 24 V typical | 1.2 A |
Power loss [W] | 5 W |
Ambient conditions |
|
Ambient temperature |
|
● during operation | 0 … 60 °C |
● during storage | -40 … +70 °C |
● during transport | -40 … +70 °C |
Relative humidity |
|
● at 25 °C without condensation during operation maximum | 95 % |
Protection class IP | IP20 |
Design, dimensions and weights |
|
Module format | Compact module S7-400 single width |
Width | 25 mm |
Height | 290 mm |
Depth | 210 mm |
Net weight | 0.65 kg |
Product features, product functions, product components general |
|
Number of units |
|
● per CPU maximum | 14 |
● Note | depending on CPU type |
Performance data open communication |
|
Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum | 32 |
Amount of data |
|
● as user data per connection for open communication by means of SEND/RECEIVE blocks maximum | 240 byte |
Performance data FMS functions |
|
Number of possible connections for FMS connection maximum | 48 |
Amount of data of the variables |
|
● for READ job maximum | 237 byte |
● for WRITE job maximum | 233 byte |
Number of variables |
|
● Configurable from server to FMS partner | 512 |
● Loadable from server to FMS partner | 2 640 |
Performance data S7 communication |
|
Number of possible connections for S7 communication |
|
● maximum | 48 |
Performance data multi-protocol mode |
|
Number of possible connections of which 2 reserved for PG/OP communication with multi-protocol mode maximum | 59 |
Product functions management, configuration, engineering |
|
Configuration software |
|
● required | STEP 7 V5.2 SP1 or higher and NCM S7 for PROFIBUS |
