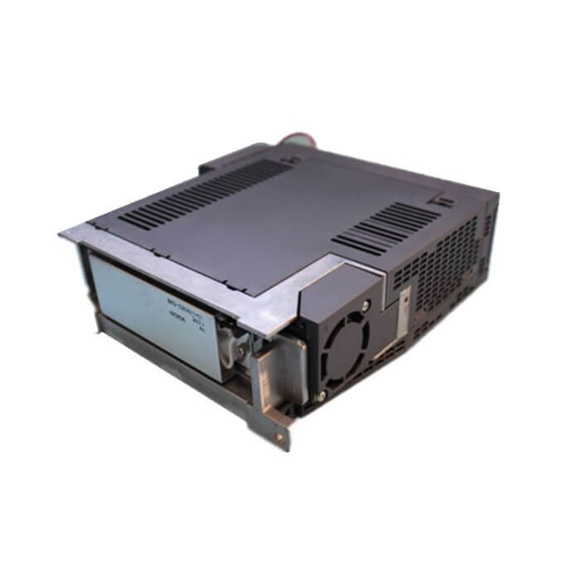

| Mitsubishi MELSERVO-J4 Servo Amplifier Cum Coegi MR-J4W2- |
22B |
44B |
77B |
1010B |
| Output Rated voltage |
III-PSE 170 V AC |
| Ratum current (singulis axis) [A] |
1.5 |
2.8 |
5.8 |
6.0 |
| Praecipua circuitu potentia copia input
Voltage / Frequency |
III-phasis seu I-phasis 200 V AC ad 240 V AC, 50 Hz/60 Hz |
3-phase 200 V AC ad 240 V AC, 50 Hz/60 Hz |
| Ratum est vena (nota 11) [A] |
2.9 |
5.2 |
7.5 |
9.8 |
| Licet voltage fluctuatio |
III-phasis seu I-phase 170 V AC ad 264 V AC |
3-phase 170 V AC ad 264 V AC |
| Licet frequency fluctuatio |
Intra ± V% |
| Facultas suppeditat facultatem [kVA] |
Refer ad sectionem 10.2. |
| Vena fluere [A] |
Refer ad sectionem 10.5. |
| Imperium circa imperium copia input intentione/Frequentia |
200 V AC ad 240 V AC, 50 Hz/60 Hz |
| Ratum est vena [A] |
0.4 |
| Licet voltage fluctuatio |
170 V AC ad 264 V AC |
| Licet frequency fluctuatio |
Intra ± V% |
| Virtus consummatio
[W] |
55 |
| Vena fluere [A] |
Refer ad sectionem 10.5. |
| Interface potentia copia Voltage |
24 V DC ± 10% |
| Facultas copia facultatem |
0.35 A (Note 1) |
| Imperium modum |
Imperium sine unda PWM, modus moderandi vena |
| Regeneratio capacitor
Reusable vis regenerativa. |
17 |
21 |
44 |
| Momentum inertiae J equivalent to licite incurrens quantitatem.
[× 10-4 kg • m2] |
3.45 |
4.26 |
8.92 |
|
Massa equivalent to licite incurrens moles (Note 4) [kg] LM-H3 |
3.8 |
4.7 |
9.8 |
| LM-K2 LM-U2 |
8.5 |
10.5 |
22.0 |
| Resistentia regenerativa inaedificata [W] |
20 |
100 |
| Dynamic fregit |
inaedificata |
| SSCNET III/H cyclum communicationis mandatum (Nota 9) |
0.222 ms, 0.444 ms, 0.888 ms |
| Communicationis munus |
USB: Iungo personalis computatrum (MR Configurator2 compatible) |
| Encoder output pulsus |
Compatible (A/B-phase pulsus) |
| Analog monitor |
Nullus |
| Plene clausa loop imperium |
Compatible (Note VIII) |
| Munus scale mensurae |
Compatible (nota 10) |
| Encoder onus-parte interface |
Mitsubishi Electric summus celeritas communicationis vide (Note 6) |
|
Munera tutela |
Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo overheat protect protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneae power defectus protection, overspeed protection, and error nimia protection. |
